Spiral Wound Gasket with Graphite Filler, 2", 1/8" Thick, No 1500 MPN:BULK-FG-3102
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2438303

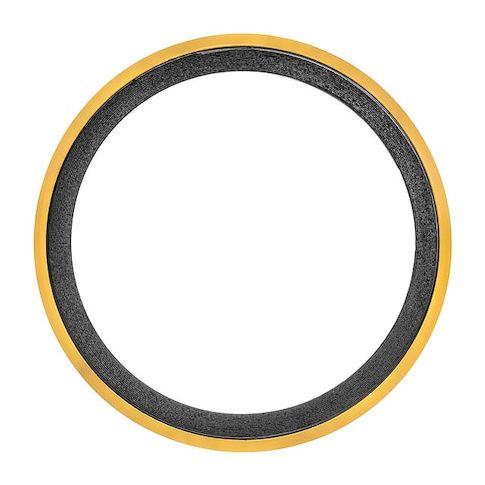

Spiral Wound Gasket with Graphite Filler, 2", 1/8" Thick, No 1500
Protect your industrial equipment with GoVets Select's Spiral Wound Gasket with Graphite Filler. Suitable for ANSI Class 1,500 flanges, this gasket is designed for use in harsh environments, withstanding temperatures from -300°F to 1,200°F. The graphite filler ensures chemical resistance, while the stainless steel spiral winding and carbon steel outer ring provide durability and corrosion resistance. Ideal for use in power plants, chemical processing, and oil and gas applications, this gasket offers long-lasting performance and reliability. Its compact size and easy installation make it a convenient choice for maintenance and repair projects.
Top product features:
- Spiral winding material made of stainless steel Grade 304 for high resistance to corrosion and durability.
- Graphite filler material provides excellent chemical resistance and sealing capabilities.
- Thickness of 3/16 in allows for effective sealing and pressure resistance in high-temperature applications.
Top product applications:
- High Temperature Flange Gasket
- Chemical Processing Equipment Gasket
- Industrial Pipe Fitting Gasket
Spiral Wound Flange Gasket, For Flange ANSI Class 1,500, For Pipe Size 2 in, Inside Diameter 2 5/16 in, Outside Diameter 5 5/8 in, Thickness 3/16 in, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -300 Degrees F, Maximum Operating Temperature 1,200 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Standards ASME B16.21, Resistance Properties Chemical-Resistant
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.20
- Package Width: 6.20
- Package Height: 6.20
- Package Weight: 0.70
Product info last updated on February 28, 2026 10:31pm UTC
Category: Sealing and Gasketing
