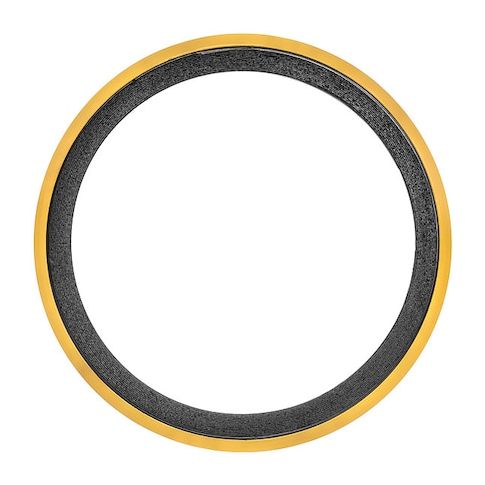

Spiral Wound Gasket with Graphite Filler, 4", 1/8" Thick, No 600 MPN:BULK-FG-3083
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2438206
Spiral Wound Gasket with Graphite Filler, 4", 1/8" Thick, No 600
This Spiral Wound Gasket with Graphite Filler is designed for use on ANSI Class 600 flanges, providing a reliable seal in high-temperature applications. The graphite filler material offers excellent chemical resistance and thermal conductivity, while the stainless steel spiral winding ensures durability and resistance to corrosion. Suitable for use in a wide range of industries, including oil and gas, chemical processing, and power generation, this gasket can withstand temperatures from -300°F to 1,200°F. Its compact size and easy installation make it an ideal solution for applications where space is limited and high-performance sealing is required.
Top product features:
- Spiral winding material is Stainless Steel Grade 304.
- Graphite filler material provides chemical resistance.
- The gasket is designed for use in high-temperature applications up to 1,200 Degrees F.
Top product applications:
- Chemical Process Industry
- Power Generation and Fossil Fuel Plants
- Oil and Gas Refining and Processing
Spiral Wound Flange Gasket, For Flange ANSI Class 600, For Pipe Size 4 in, Inside Diameter 4 3/4 in, Outside Diameter 7 5/8 in, Thickness 3/16 in, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -300 Degrees F, Maximum Operating Temperature 1,200 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Standards ASME B16.21, Resistance Properties Chemical-Resistant
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.20
- Package Width: 8.20
- Package Height: 8.20
- Package Weight: 0.90
Product info last updated on January 27, 2026 7:38am UTC
Category: Sealing and Gasketing
