Spiral Wound Gasket with Graphite Filler, 3/4", 1/8" Thick, No 150 MPN:BULK-FG-1972
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2438084

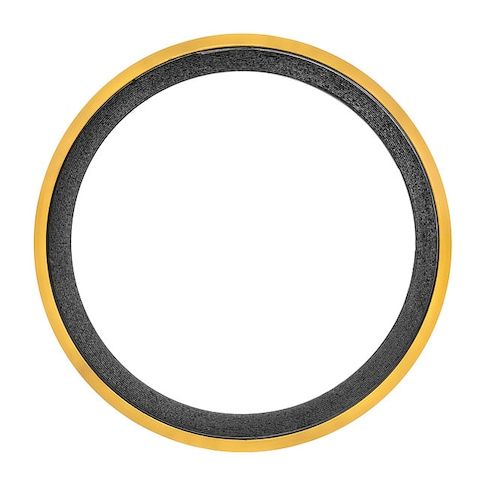

Spiral Wound Gasket with Graphite Filler, 3/4", 1/8" Thick, No 150
This Spiral Wound Gasket with Graphite Filler is designed for use on flanges in industrial applications, providing a secure seal in extreme temperatures from -300°F to 1,200°F. The graphite filler ensures optimal performance in high-pressure and high-temperature conditions, while the stainless steel spiral winding and carbon steel outer ring offer durability and resistance to corrosion. Suitable for use in a variety of industries, including oil and gas, chemical processing, and power generation, this gasket provides reliable performance and long-lasting service. It meets ASME B16.20 standards and is available for immediate shipping.
Top product features:
- Spiral winding material is stainless steel Grade 304, providing corrosion resistance and durability.
- The gasket has a graphite filler, allowing for high-temperature sealing and reducing the risk of leakage.
- The gasket is designed for use with flanges of ANSI Class 150, ensuring a secure and reliable connection.
Top product applications:
- High-Pressure Steam Systems
- Chemical Processing Plants
- Power Generation Facilities
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 3/4 in, Inside Diameter 1 in, Outside Diameter 2 1/4 in, Thickness 3/16 in, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -300 Degrees F, Maximum Operating Temperature 1,200 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Standards ASME B16.20, Market Industrial, System of Measurement Inch
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.20
- Package Height: 0.20
- Package Weight: 0.07
Product info last updated on January 18, 2026 12:59pm UTC
Category: Sealing and Gasketing
