Full Face Graphite Flange Gasket for 1-1/2" Pipe, 1/8" Thick, No 150 MPN:BULK-FG-1722
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2437384

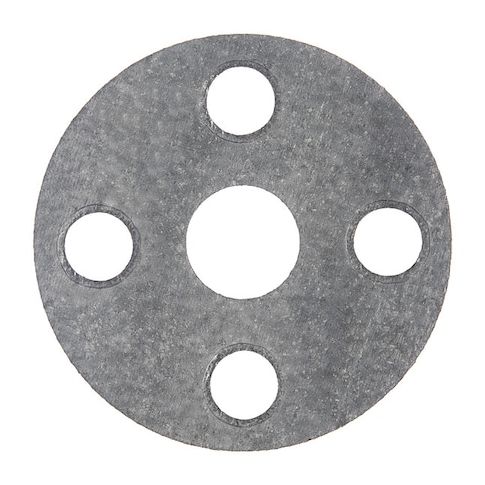

Full Face Graphite Flange Gasket for 1-1/2" Pipe, 1/8" Thick, No 150
This full-face graphite flange gasket is designed for use with 1-1/2in pipe and ANSI Class 150 flanges, offering reliable sealing in high-temperature applications. Its 1/8in thickness and 5in outside diameter provide a secure fit, while the graphite material ensures durability and resistance to corrosion. Suitable for use in a range of industries, including chemical processing and power generation, this gasket can withstand temperatures from -400°F to 975°F. Its compact size and lightweight design make it easy to install and transport, making it an ideal choice for applications where space and weight are a concern.
Top product features:
- Full Face Flange Gasket design provides a seal around the entire pipe flange for a secure and leak-free connection.
- Graphite material is used for the gasket, offering excellent thermal conductivity and resistance to high temperatures.
- The gasket is designed with a 1/8in thickness for durability and resistance to wear and tear.
Top product applications:
- Chemical Processing
- High-Temperature Furnace Seals
- Industrial Pipe Connections
Full Face Flange Gasket, Gasket Material Graphite, Insert Material None, For Pipe Size 1 1/2 in, For Flange ANSI Class 150, Binder Material None, Color Gray, Inside Diameter 1 15/16 in, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 975 Degrees F, Outside Diameter 5 in, Thickness 1/8 in, Number of Bolt Holes 4, Bolt Hole Diameter 5/8 in, Gasket Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 6.00
- Package Height: 0.20
- Package Weight: 0.09
Product info last updated on February 11, 2026 10:43am UTC
Category: Sealing and Gasketing
