Full Face Graphite Flange Gasket for 2" Pipe, 1/8" Thick, No 150 MPN:BULK-FG-1723
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2437339

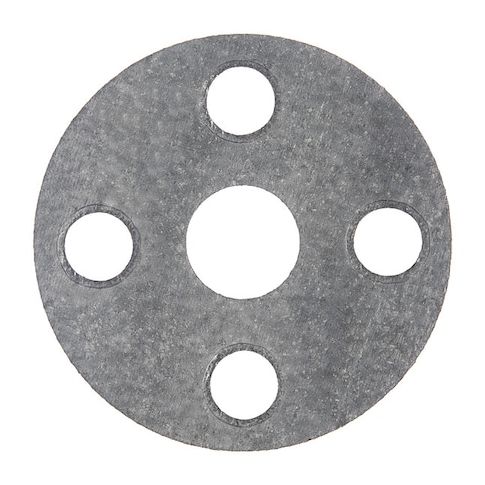

Full Face Graphite Flange Gasket for 2" Pipe, 1/8" Thick, No 150
This full-face graphite flange gasket is designed for use on 2in pipe, providing a reliable seal in high-temperature applications. The graphite material offers excellent thermal conductivity and resistance to corrosion, while the full-face design ensures a tight seal with minimal leakage. Suitable for use in industries such as chemical processing, power generation, and oil and gas, this gasket can withstand temperatures from -400°F to 975°F. Its compact size and ease of installation make it an ideal choice for applications where space is limited. The gasket is also available in a variety of sizes to accommodate different pipe diameters.
Top product features:
- Full Face Graphite Flange Gasket provides a graphite material for high-temperature applications.
- The gasket is designed for use with ANSI Class 150 flanges.
- The gasket has a thickness of 1/8in for added durability and sealing performance.
Top product applications:
- High-temperature industrial piping systems
- Chemical processing plants
- Power generation facilities
Full Face Flange Gasket, Gasket Material Graphite, Insert Material None, For Pipe Size 2 in, For Flange ANSI Class 150, Binder Material None, Color Gray, Inside Diameter 2 3/8 in, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 975 Degrees F, Outside Diameter 6 in, Thickness 1/8 in, Number of Bolt Holes 4, Bolt Hole Diameter 3/4 in, Product Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 6.40
- Package Height: 0.20
- Package Weight: 0.12
Product info last updated on March 22, 2026 6:53pm UTC
Category: Sealing and Gasketing
