Full Face Graphite Flange Gasket for 6" Pipe, 1/16" Thick, No 150 MPN:BULK-FG-1707
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2437226

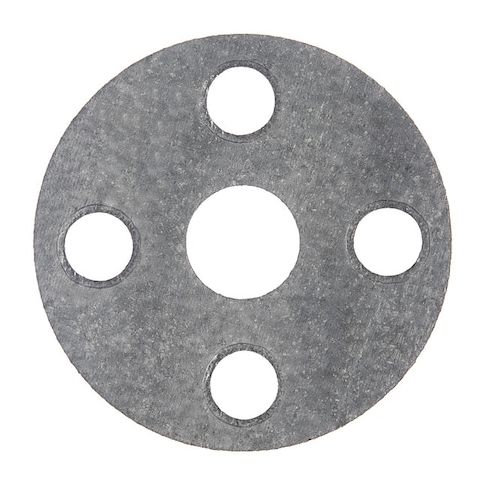

Full Face Graphite Flange Gasket for 6" Pipe, 1/16" Thick, No 150
Protect your 6in pipe connections with the durable Full Face Graphite Flange Gasket from GoVets Select. This high-temperature gasket is designed for use in extreme conditions, with a minimum operating temperature of -400°F and a maximum operating temperature of 975°F. Its 1/16in thickness and graphite material provide excellent sealing and resistance to corrosion, making it ideal for use in chemical processing, power generation, and oil and gas applications. With its compact design and easy installation, this gasket is a reliable solution for maintaining leak-tight connections in demanding industrial environments.
Top product features:
- Full Face design provides a complete seal around the pipe flange
- Graphite material offers high-temperature resistance and chemical inertness
- Thickness of 1/16 inch provides sufficient durability for high-pressure applications
Top product applications:
- Industrial pipe connections
- High-temperature furnace applications
- Power plant equipment maintenance
Full Face Flange Gasket, Gasket Material Graphite, Insert Material None, For Pipe Size 6 in, For Flange ANSI Class 150, Binder Material None, Color Gray, Inside Diameter 6 5/8 in, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 975 Degrees F, Outside Diameter 11 in, Thickness 1/16 in, Number of Bolt Holes 8, Bolt Hole Diameter 7/8 in, Product Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 11.00
- Package Height: 0.10
- Package Weight: 0.22
Product info last updated on February 24, 2026 5:53pm UTC
Category: Sealing and Gasketing
