Full Face Rnfcd Graphite Flange Gasket 4" Pipe, 1/16" T, No 150 MPN:BULK-FG-968
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2435783

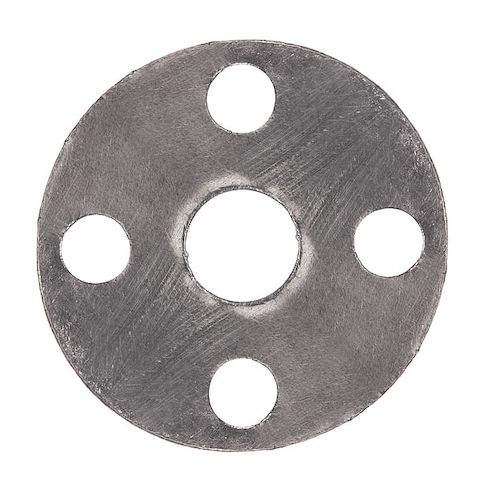

Full Face Rnfcd Graphite Flange Gasket 4" Pipe, 1/16" T, No 150
This Full Face Rnfcd Graphite Flange Gasket is designed for use on 4in pipes with ANSI Class 150 flanges, ensuring a reliable seal in high-temperature applications. The graphite material provides excellent thermal conductivity and resistance to corrosion, while the 316 stainless steel insert ensures durability. With a temperature range of -400°F to 975°F, this gasket is suitable for use in industrial settings, including chemical processing, power generation, and oil and gas production. Its compact size and ease of installation make it a convenient solution for maintenance and repair needs.
Top product features:
- Full Face Flange Gasket design provides a complete seal around the pipe flange.
- 316 Stainless Steel insert material offers resistance to corrosion and wear.
- Graphite gasket material allows for flexibility and adaptability to varying temperatures.
Top product applications:
- Chemical processing
- Oil and gas industry
- High-temperature piping systems
Full Face Flange Gasket, Gasket Material Graphite, Insert Material 316 Stainless Steel, For Pipe Size 4 in, For Flange ANSI Class 150, Binder Material None, Color Gray, Inside Diameter 4 1/2 in, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 975 Degrees F, Outside Diameter 9 in, Thickness 1/16 in, Number of Bolt Holes 8, Bolt Hole Diameter 3/4 in, Gasket Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.10
- Package Width: 9.10
- Package Height: 0.10
- Package Weight: 0.17
Product info last updated on March 22, 2026 1:53am UTC
Category: Sealing and Gasketing
