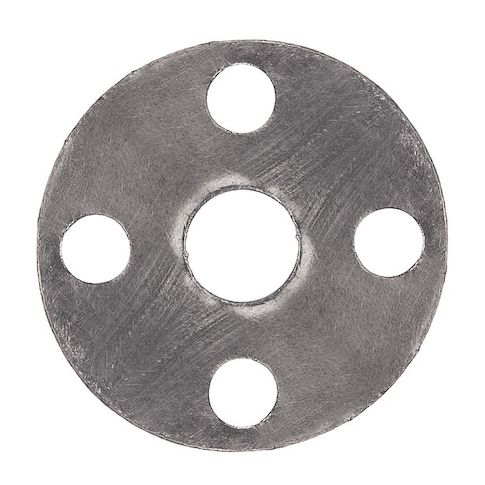

Full Face Rnfcd Graphite Flange Gasket 6" Pipe, 1/16" T, No 150 MPN:BULK-FG-971
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2435695
Full Face Rnfcd Graphite Flange Gasket 6" Pipe, 1/16" T, No 150
This Full Face Rnfcd Graphite Flange Gasket is designed for use on 6in pipes in ANSI Class 150 flanges, providing a reliable seal in high-temperature applications. The graphite material offers excellent thermal conductivity and resistance to corrosion, while the 316 stainless steel insert provides added strength and durability. With a temperature range of -400°F to 975°F, this gasket is suitable for use in demanding industrial environments. Its compact design and low weight make it ideal for use in tight spaces and on equipment subject to vibration. Suitable for use in chemical processing, power generation, and other high-temperature applications.
Top product features:
- Full Face Flange Gasket provides a seal between two flanges in high-temperature applications
- 316 Stainless Steel insert material offers corrosion resistance and durability
- Graphite gasket material allows for flexibility and adaptability in various operating conditions
Top product applications:
- High-temperature pipe connections
- Power plant and industrial piping systems
- Chemical processing and refinery applications
Full Face Flange Gasket, Gasket Material Graphite, Insert Material 316 Stainless Steel, For Pipe Size 6 in, For Flange ANSI Class 150, Binder Material None, Color Gray, Inside Diameter 6 5/8 in, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 975 Degrees F, Outside Diameter 11 in, Thickness 1/16 in, Number of Bolt Holes 8, Bolt Hole Diameter 7/8 in, Product Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.40
- Package Width: 11.40
- Package Height: 0.10
- Package Weight: 0.24
Product info last updated on January 20, 2026 12:22pm UTC
Category: Sealing and Gasketing
