Full Face Rnfcd Graphite Flange Gasket 3" Pipe, 1/16" T, No 150 MPN:BULK-FG-966
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2435643

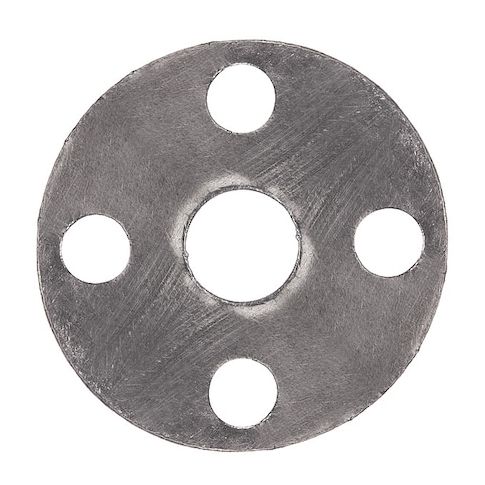

Full Face Rnfcd Graphite Flange Gasket 3" Pipe, 1/16" T, No 150
This Full Face Rnfcd Graphite Flange Gasket is designed for use with 3in pipe and ANSI Class 150 flanges, providing a reliable seal in high-temperature applications. The graphite material offers excellent thermal conductivity and resistance to corrosion, while the 316 stainless steel insert provides strength and durability. Suitable for use in chemical processing, power generation, and other industries, this gasket can withstand extreme temperatures from -400°F to 975°F. Its compact size and low weight make it easy to handle and install, reducing downtime and increasing productivity in demanding industrial settings.
Top product features:
- Made from graphite material for high temperature resistance
- Features 316 stainless steel insert for added durability
- Has a full-face design for a tight seal on 3in pipe flanges
Top product applications:
- High-temperature pipe connections
- Industrial process piping
- Chemical processing equipment
Full Face Flange Gasket, Gasket Material Graphite, Insert Material 316 Stainless Steel, For Pipe Size 3 in, For Flange ANSI Class 150, Binder Material None, Color Gray, Inside Diameter 3 1/2 in, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 975 Degrees F, Outside Diameter 7 1/2 in, Thickness 1/16 in, Number of Bolt Holes 4, Bolt Hole Diameter 3/4 in, Product Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 7.50
- Package Height: 0.10
- Package Weight: 0.06
Product info last updated on April 5, 2026 9:01pm UTC
Category: Sealing and Gasketing
