Full Face Viton Flange Gasket for 1" Pipe, 1/8" Thick, No 150 MPN:BULK-FG-432
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2434408

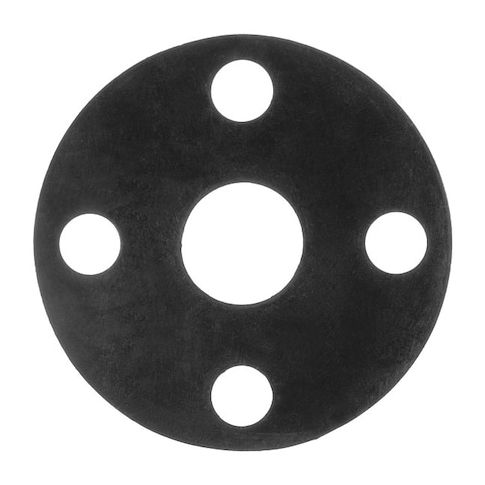

Full Face Viton Flange Gasket for 1" Pipe, 1/8" Thick, No 150
Protect your 1in pipe connections with the GoVets Select Full Face Viton Flange Gasket, designed for ANSI Class 150 flanges. Made from high-quality FKM material, this gasket offers excellent resistance to chemicals and operates effectively between -20°F and 450°F. Its 1/8in thickness provides a secure seal, while the 4 1/4in outside diameter and 1 5/16in inside diameter ensure a snug fit. Ideal for use in chemical processing, oil and gas, and pharmaceutical industries, this gasket is a reliable solution for maintaining leak-free connections and preventing costly downtime. Order now and ensure the integrity of your piping system.
Top product features:
- Seals 1 inch pipe connections up to 450 degrees F
- Made with FKM gasket material for chemical resistance
- Has a full-face design with 4 bolt holes for secure mounting
Top product applications:
- Pipe connections in chemical processing plants
- Industrial equipment assembly requiring high temperature resistance
- Sealing flanges in oil and gas refineries
Full Face Flange Gasket, Gasket Material FKM, Insert Material Not Applicable, For Pipe Size 1 in, For Flange ANSI Class 150, Color Black, Inside Diameter 1 5/16 in, Minimum Operating Temperature -20 Degrees F, Maximum Operating Temperature 450 Degrees F, Outside Diameter 4 1/4 in, Thickness 1/8 in, Number of Bolt Holes 4, Bolt Hole Diameter 5/8 in, Product Type Full-Face Gasket, Metal Detectable Gasket No, Hardness Not Rated, Includes Mounting Hardware No, For Fluid Type Chemicals
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 4.40
- Package Height: 0.10
- Package Weight: 0.10
Product info last updated on February 9, 2026 2:57pm UTC
Category: Sealing and Gasketing
