Raised Face Aramid Flange Gasket for 10" Pipe, 1/8" Thick, No 150 MPN:BULK-FG-266
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2434173

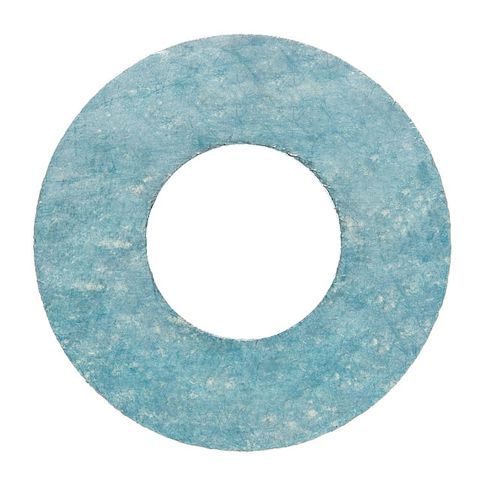

Raised Face Aramid Flange Gasket for 10" Pipe, 1/8" Thick, No 150
This high-performance Raised Face Aramid Flange Gasket is designed for use on 10in pipes in ANSI Class 150 flanges. Made with durable aramid material, it provides excellent resistance to high temperatures and chemicals, making it ideal for oil-based applications. The gasket's green color and 1/8in thickness ensure a secure seal, while its metal detectable feature allows for easy inspection. With a temperature range of -100°F to 400°F, this gasket is suitable for a variety of industries, including oil and gas, chemical, and power generation. Its compact size and lightweight design make it easy to handle and install.
Top product features:
- Aramid flange gasket material provides high temperature resistance
- Binder material Buna-N offers chemical resistance
- 1/8in thickness provides sufficient sealability for ANSI Class 150 flange
Top product applications:
- High-temperature oil piping systems
- Steam turbine applications
- Industrial oil refining processes
Ring Flange Gasket, Gasket Material Aramid, Insert Material None, For Pipe Size 10 in, For Flange ANSI Class 150, Binder Material Buna-N, Color Green, Inside Diameter 10 3/4 in, Minimum Operating Temperature -100 Degrees F, Maximum Operating Temperature 400 Degrees F, Outside Diameter 13 3/8 in, Thickness 1/8 in, Product Type Ring Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated, Includes Mounting Hardware No, X-Ray Detectable No, For Fluid Type Oil
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.50
- Package Width: 13.50
- Package Height: 0.20
- Package Weight: 0.40
Product info last updated on February 1, 2026 12:00pm UTC
Category: Sealing and Gasketing
