Full Face Aramid Flange Gasket for 10" Pipe, 1/8" Thick, No 150 MPN:BULK-FG-68
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2433613

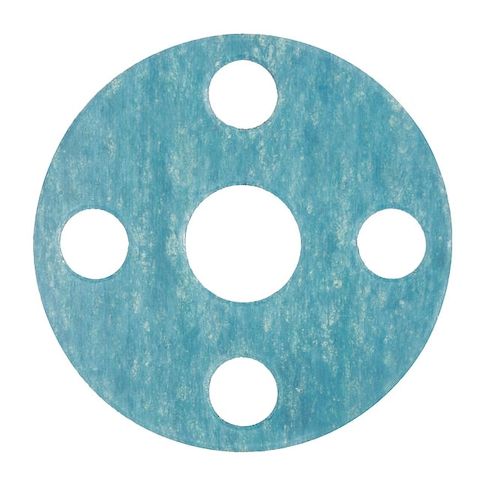

Full Face Aramid Flange Gasket for 10" Pipe, 1/8" Thick, No 150
This full-face aramid flange gasket is designed for use on 10-inch pipes with ANSI Class 150 flanges, providing a reliable seal in high-temperature applications up to 400°F. The aramid material offers excellent resistance to chemicals, heat, and corrosion, making it suitable for use in a variety of industries, including oil and gas, chemical processing, and power generation. Its compact design and easy installation make it an ideal choice for maintenance and repair applications, while its durability ensures long-lasting performance and reduced downtime. The gasket is made in the US and ships quickly, with a lead time of just one day.
Top product features:
- Aramid material provides resistance to heat and chemicals
- Buna-N binder material helps maintain gasket seal at low temperatures
- Full-face design allows for a tight seal around the entire flange
Top product applications:
- High-pressure oil and gas pipelines
- Industrial chemical processing plants
- Power generation facilities
Full Face Flange Gasket, Gasket Material Aramid, Insert Material None, For Pipe Size 10 in, For Flange ANSI Class 150, Binder Material Buna-N, Color Green, Inside Diameter 10 3/4 in, Minimum Operating Temperature -100 Degrees F, Maximum Operating Temperature 400 Degrees F, Outside Diameter 16 in, Thickness 1/8 in, Number of Bolt Holes 12, Bolt Hole Diameter 1 in, Gasket Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.30
- Package Width: 16.30
- Package Height: 0.20
- Package Weight: 0.82
Product info last updated on January 19, 2026 10:24pm UTC
Category: Sealing and Gasketing
