Full Face Aramid Flange Gasket for 5" Pipe, 1/16" Thick, No 150 MPN:BULK-FG-12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2433376

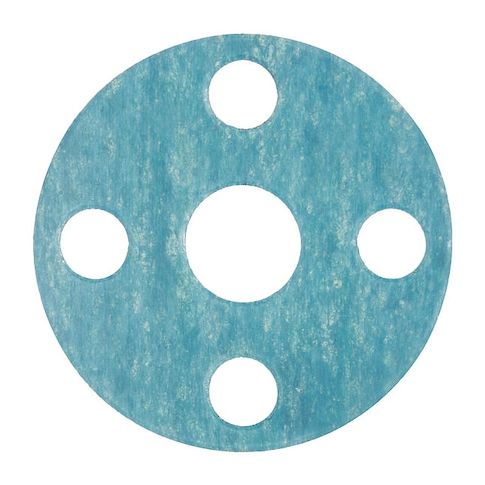

Full Face Aramid Flange Gasket for 5" Pipe, 1/16" Thick, No 150
For demanding industrial applications, GoVets Select's Full Face Aramid Flange Gasket is a top choice. This 5in pipe gasket offers exceptional durability and resistance to extreme temperatures, from -100°F to 400°F. Its aramid material ensures reliable performance in high-pressure environments, while its green color provides easy identification. Suitable for use in ANSI Class 150 flanges, this gasket is ideal for applications in chemical processing, oil and gas, and power generation. With a thickness of 1/16in and a diameter of 10in, it provides a secure seal and easy installation, making it an excellent option for industries requiring high-quality, long-lasting gaskets.
Top product features:
- Aramid material provides high temperature resistance up to 400 Degrees F
- Buna-N binder material ensures a secure seal
- 8 bolt holes with 7/8in diameter allow for secure fastening
Top product applications:
- High-pressure industrial applications requiring extreme temperature resistance
- Oil and gas pipeline connections
- Chemical processing plant flange connections
Full Face Flange Gasket, Gasket Material Aramid, Insert Material None, For Pipe Size 5 in, For Flange ANSI Class 150, Binder Material Buna-N, Color Green, Inside Diameter 5 9/16 in, Minimum Operating Temperature -100 Degrees F, Maximum Operating Temperature 400 Degrees F, Outside Diameter 10 in, Thickness 1/16 in, Number of Bolt Holes 8, Bolt Hole Diameter 7/8 in, Gasket Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 0.10
- Package Weight: 0.20
Product info last updated on January 30, 2026 11:16pm UTC
Category: Sealing and Gasketing
