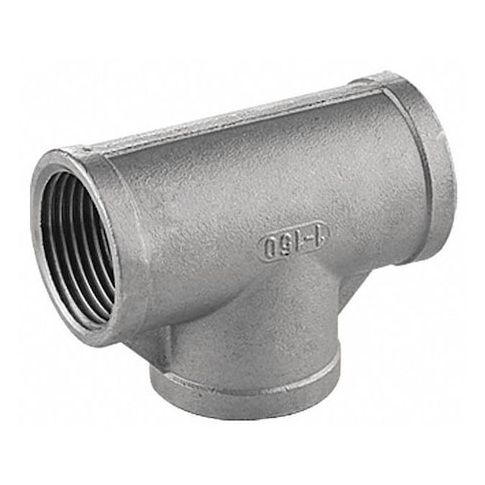

1/2 in FNPT 316 Stainless Steel Threaded Tee, Class 150, Max Pressure 300 psi MPN:60TE111N012

• The ZORO SELECT - 60TE111N012 is a stainless steel Tee pipe fitting made from 316 stainless steel alloy, designed to join three 1/2-inch pipe runs in a T-shaped configuration. It enables fluid or gas flow to be split or combined with a 90° branch and is suitable for fluids compatible with 316 stainless steel alloy and within the product’s specified operating conditions (Class 150 pressure

• maximum 300 psi operating pressure
• maximum 150 psi steam pressure)
• refer to technical data for fluid compatibility. This fitting features female NPT threaded connections on all three ends and is rated for Class 150 pressure with a maximum operating pressure of 300 psi, and a maximum steam pressure rating of 150 psi.

  Key Features:


  • - Material: 316 Stainless Steel
  • - Fitting Shape/Sub-Category: Tee
  • - Nominal Pipe Size: 1/2 in on all three ends
  • - Connection Type: Female NPT threads on Sides A, B, and C
  • - Pressure Class: Class 150
  • - Maximum Operating Pressure: 300 psi
  • - Maximum Steam Pressure: 150 psi
  • - Compliant with ANSI B1.20.1 standard for NPT threaded connections
  • - Color: Silver
  • - Overall Length: 43 mm
  • - Does not include pre-applied thread sealant or additional seals
