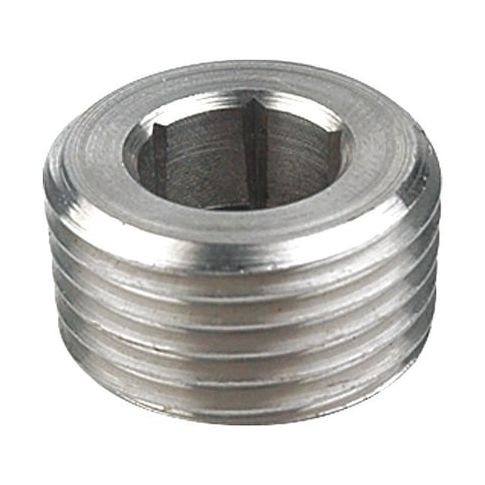

Hex Socket Plug, 1/8 in MNPT, 304 Stainless Steel, Class 150, 3/16 in Hex Size MPN:40SP112N018
The GoVets Select hex socket plug is a versatile and reliable solution for closing off pipes, fittings, or ports in various industrial and commercial applications. Made from 304 stainless steel, it offers exceptional corrosion and temperature resistance, ensuring a long-lasting performance. With a Class 150 pressure rating, it can withstand up to 150 psi, making it suitable for steam service and use in Class 150 piping systems. The hex socket design allows for easy installation and removal using an Allen wrench, making it a convenient choice for maintenance and repair tasks in industries such as chemical processing, oil and gas, and power generation.
Top product features:
- Material: 304 stainless steel for corrosion and temperature resistance
- Connection Type: Male National Pipe Thread (MNPT) for secure attachment to pipes or fittings
- Pressure Rating: Class 150 for operation up to 150 psi, suitable for steam service
Top product applications:
- Pipe closure in steam systems
- Fitting for Class 150 piping systems
- Pressure relief valve plug in industrial applications
The ZORO SELECT - 40SP112N018 is a hex socket plug made from 304 stainless steel, designed to close off the end of a pipe, fitting, or port. It features a male-threaded connection with a hexagonal recess for tightening or removal using an Allen wrench
- seals within the Class 150 pressure rating up to 150 psi. Maximum operating pressure: 150 psi (Class 150)
- steam service up to 150 psi. It is compatible with Class 150 piping systems and mates with pipes or fittings sized 1/8 inch nominal pipe size and Schedule 40 wall thickness. The fitting conforms to ASTM A351 standards and supports a temperature range from -60 to 450 degrees Fahrenheit.
Key Features:
- - Material: 304 stainless steel for corrosion and temperature resistance
- - Connection Type: Male National Pipe Thread (MNPT), 1/8 inch nominal size
- - Pressure Rating: Class 150, Maximum operating pressure: 150 psi (Class 150)
- - Drive style: Hex socket (Allen key)
- hex size: 3 inches
- - Dimensions: Outside diameter 1/8 inch
- overall length 5/16 inch
- - Temperature Range: Suitable for use from -60 to 450 degrees Fahrenheit
- - Design Standard: Manufactured to ASTM A351 specification
- - Does not include pre-applied thread sealant or additional sealing components
- - Basic Shape: Plug, specifically a hex socket plug
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 0.30
- Package Weight: 0.01
