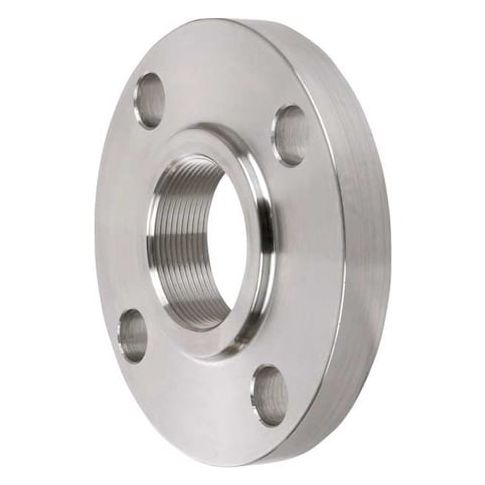

3" FNPT SS Threaded Flange MPN:4381002700
The ZORO SELECT 3in FNPT SS Threaded Flange is a reliable and versatile component for connecting pipes, valves, pumps, and equipment in piping systems. Made from durable 316 stainless steel, this flange withstands high pressures and temperatures, making it ideal for use in various industries such as chemical processing, oil and gas, and water treatment. Its female NPT connections and raised face design ensure secure and leak-free connections. With a pressure rating of 150 psi and temperature range of -60°F to 450°F, this flange is perfect for applications where high performance and durability are required.
Top product features:
- 316 Stainless Steel construction
- Raised Face connection surface
- Female National Pipe Thread (FNPT) connections
Top product applications:
- Connecting pipes in piping systems
- Connecting valves in piping systems
- Connecting pumps in piping systems
The ZORO SELECT - 4381002700 is a stainless steel flange designed for connecting pipes, valves, pumps, and equipment in piping systems. Material Grade: 316 Stainless Steel
- Max Operating Pressure: 150 psi
- Temperature Range: -60°F to 450°F
- Standards: ANSI B16.5
- ASTM A182. This flange has a nominal pipe size of 3 inches, a raised face connection surface, and features female National Pipe Thread (FNPT) connections. It is rated for a maximum operating pressure of 150 psi within a temperature range of -60°F to 450°F. The flange conforms to ANSI B16.5 and ASTM A182 standards, with its pressure class designated as Class 150. Key Features:
- - Material Grade: 316 Stainless Steel
- - Flange Outside Diameter: 7 1/2 inches
- - Number of Bolt Holes: 4
- - Connection Surface Type: Raised Face
- - Connection Type: Female NPT (FNPT) threaded
- - Pressure Rating: Class 150, Max Operating Pressure 150 psi
- - Temperature Range: -60°F to 450°F
- - Standards: ANSI B16.5
- ASTM A182
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 7.50
- Package Height: 1.19
- Package Weight: 9.26
