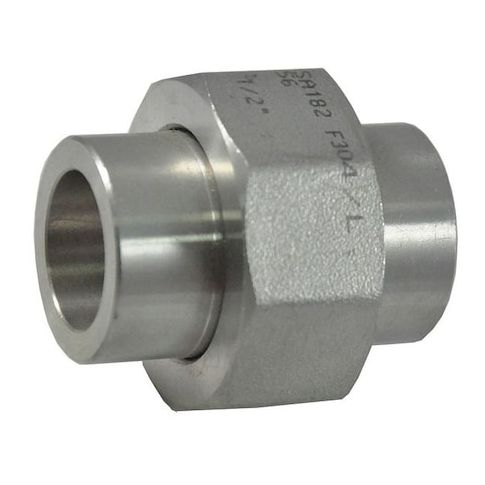

1-1/2 in Socket Weld Union, 304 Stainless Steel, Class 3000 MPN:1LUH8

The ZORO SELECT - 1LUH8 is a stainless steel pipe union designed to join two 1-1/2 inch pipe ends. This three-piece fitting consists of a body, nut, and mating seat, which provides a connection that does not require pipe rotation. Constructed from 304 stainless steel, it features socket weld connections on both ends with female gender fittings and an 11 1/2 pipe threading specification. The union is rated for operation within the specified pressure and temperature ranges according to ASTM-A-182 and MSS SP-83 standards. It is designed for systems requiring a pressure-tight seal within specified operating conditions.

Key Features:

• - Material: 304 Stainless Steel
• - Pipe Size: 1-1/2 inch nominal diameter
• - Connection Type: Socket Weld, Female ends
• - Thread Size: 11 1/2 threads per inch on both sides
• - Pressure Rating: Class 3000, max pressure 2,900 psi @ 100°F
• - Steam Pressure Rating: 2,500 psi @ 350°F
• - Includes no pre-applied thread sealant or sealing components
• - Meets ASTM-A-182 and MSS SP-83 standards
