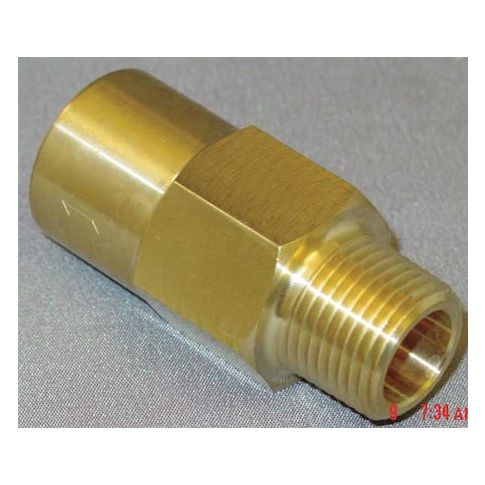

3/8" MNPT x FNPT Brass Piston Spring Check Valve MPN:CHK BRS 610-6M6F-F
Free Shipping
In Stock
This 3/8in MNPT x FNPT Brass Piston Spring Check Valve from GoVets Select is a reliable and efficient solution for various applications. Ideal for use in water, steam, and air systems, it features a single flow design and inline piston mechanism for smooth operation. The brass body and stainless steel spring ensure durability and resistance to corrosion. With a cracking pressure of 1 psi and max water pressure of 500 psi, it can handle high-pressure applications. Suitable for horizontal and vertical mounting, this check valve is perfect for plumbing, HVAC, and industrial use, providing a secure and leak-free flow control.
Top product features:
- Piston design allows for inline installation and smooth flow of liquids and gases.
- Viton seal material provides resistance to chemicals and high temperatures.
- Stainless steel spring material ensures durability and resistance to corrosion.
Top product applications:
- Water Supply Systems
- Steam Heating Systems
- Hydraulic Systems
ZORO SELECT Series 610 check valve is an inline brass piston spring check valve for general-purpose air and compatible fluid applications. It is intended to permit one-way flow and restrict reverse flow using a spring-loaded piston. This 3/8 in. valve features MNPT x FNPT threaded connections, a 1 psi cracking pressure, a full-flow design, and is configured for horizontal or vertical installation.
Key Features:
- Valve type: Piston spring check valve with inline piston mechanism
- Body and internal materials: Brass body, brass check mechanism, and brass seat
- Connections: 3/8 in. MNPT x FNPT with NPT threaded ends
- side 1 male and side 2 female
- Pressure rating: 500 psi maximum operating pressure and 500 psi maximum water pressure
- Temperature range: -20 degrees F minimum operating temperature to 180 degrees F maximum operating temperature
- Seal and spring: Viton/FKM seal with stainless steel spring
- Flow characteristics: Cv 1.4 and 1 psi cracking pressure
- Installation: Horizontal or vertical
- Dimensions: 1 11/16 in. length, 7/8 in. overall height and width, 7/8 in. hex size, and 3 9/16 in. cap to inlet center
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.50
- Package Height: 1.10
- Package Weight: 1.02
