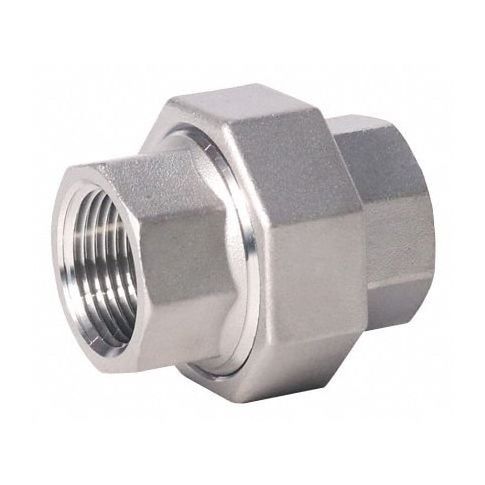

316 Stainless Steel Union, 3/4 in x 3/4 in Fitting Pipe Size, Female NPT x Female NPT, Class 150 MPN:600U111N034
Join pipes with ease and efficiency using the 316 Stainless Steel Union from GoVets Select. This three-piece fitting features female National Pipe Thread (NPT) connections on both ends, allowing for easy maintenance and replacement without requiring pipe rotation. Suitable for a wide range of applications, including air, natural gas, non-potable water, oil, potable water, and steam, this union is built to withstand Class 150 pressure. Its corrosion-resistant 316 stainless steel construction ensures durability and longevity, making it an ideal choice for industries such as manufacturing, HVAC, and plumbing.
Top product features:
- 316 stainless steel construction for corrosion resistance
- Female National Pipe Thread (NPT) connections on both ends for easy assembly and disassembly
- Three-piece design with a body, nut, and mating seat or gasket for maintenance and replacement
Top product applications:
- Air applications
- Natural gas applications
- Potable water applications
The ZORO SELECT - 600U111N034 is a 3/4-inch stainless steel pipe union constructed from 316 stainless steel, designed to join two pipe ends without requiring them to be rotated for connection or disconnection. This three-piece fitting includes a body, nut, and mating seat or gasket, allowing for maintenance or replacement. It is rated for Class 150 pressure and is compatible with applications involving air, natural gas, non-potable water, oil, potable water, and steam. The fitting features female National Pipe Thread (NPT) connections on both ends.
Key Features:
- - Pipe Size: 3/4 inch nominal pipe size on both ends.
- - Connection Type: Female NPT threading with 14 threads per inch on both Side A and Side B.
- - Material Grade: 316 stainless steel for corrosion resistance.
- - Pressure Rating: Class 150 with maximum operating pressure not to exceed Class 150 rating and maximum steam pressure of 150 psi.
- - Hex Size: 46.5 mm wrenching surface for installation.
- - Overall Length: 38.5 mm.
- - Meets ANSI Standards B1.20.1 for threading and Class 150 pressure rating.
- - Includes no pre-applied thread sealant or sealing components.
- - Compliant with low lead requirements for potable water usage.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.90
- Package Height: 1.90
- Package Weight: 0.55
