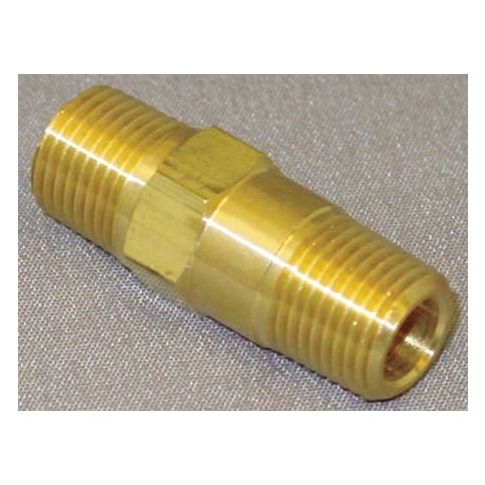

1/8" MNPT Brass Piston Spring Check Valve MPN:CHK BRS 210-2M2M-F
Free Shipping
In Stock
This 1/8in MNPT Brass Piston Spring Check Valve is a reliable and efficient solution for a variety of applications. It features a single flow design and inline piston mechanism, making it suitable for use in both horizontal and vertical orientations. The valve is constructed from high-quality brass and stainless steel materials, ensuring durability and resistance to corrosion. With a cracking pressure of 1 psi and a maximum water pressure of 500 psi, it is ideal for use in water-based systems, including plumbing, irrigation, and industrial processes. Its compact size and low weight make it easy to install and handle.
Top product features:
- Piston design allows for inline installation
- Full flow capability is achieved
- Stainless steel spring provides durability
Top product applications:
- Steam Trapping Systems
- Pneumatic Control Systems
- Hydraulic Systems
ZORO SELECT Series 210 check valve is an inline piston spring check valve for compatible air and fluid applications within the stated pressure and temperature ratings. It features a spring-loaded piston check mechanism for one-way flow control in piping systems. This brass valve has a 1/8 in nominal size with male NPT connections on both ends, a 1 psi cracking pressure, and can be mounted horizontally or vertically.
Key Features:
- Inline piston spring check valve
- Brass body, brass check mechanism, and brass seat
- 1/8 in MNPT x MNPT connections
- Compatible media: air, fluids
- Cracking pressure: 1 psi
- Maximum operating pressure: 500 psi
- Operating temperature range: -20 degrees F to 180 degrees F
- Seal material: Viton/FKM
- Spring material: stainless steel
- Full flow: Yes
- Mounting orientation: horizontal or vertical
- Cv: 0.2
- Overall length: 1.19 in
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.00
- Package Height: 0.50
- Package Weight: 0.17
