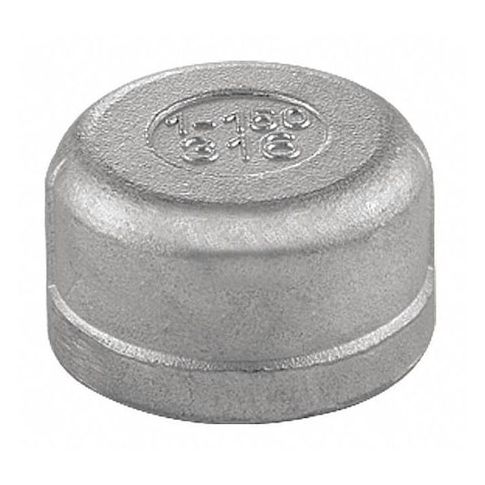

2" FNPT 304 SS Cap MPN:40RDC111N020
Seal the end of your 2-inch pipe with the ZORO SELECT 40RDC111N020 stainless steel pipe cap. Manufactured from durable 304 stainless steel, this cap is designed for line termination and pressure testing in Class 150 service. With a maximum operating pressure of 300 psi and temperature range of -20°F to 350°F, it's perfect for use in a variety of applications, including plumbing, HVAC, and industrial processes. Its FNPT connection ensures a secure seal, and its compact size makes it easy to install. Ideal for use in high-pressure and high-temperature environments, this cap is a reliable solution for your piping needs.
Top product features:
- Seals the end of a 2-inch pipe to terminate flow in a piping system
- Conforms to Class 150 pressure standards for line termination and pressure testing
- Features an FNPT connection for secure attachment to a 2-inch pipe
Top product applications:
- Pressure Testing within Class 150 service
- Line Termination in 2-inch piping systems
- Steam Distribution Systems with a maximum operating pressure of 150 psi
The ZORO SELECT - 40RDC111N020 is a stainless steel pipe cap used to close the end of a 2-inch pipe with FNPT connection. Manufactured from 304 stainless steel, it seals the end of the pipe to terminate flow in a 2-inch piping system. This cap features an FNPT (female national pipe thread) connection and conforms to Class 150 pressure standards, intended for line termination and pressure testing within Class 150 service, with a maximum operating pressure of 300 psi and temperature range -20°F to 350°F.
Key Features:
- - Material Grade: 304 Stainless Steel
- - Fitting Connection Type: Female National Pipe Thread (FNPT)
- - Nominal Pipe Size: 2 inches
- - Pressure Class: Class 150, with a maximum operating pressure of 300 psi
- - Temperature Range: -20 Degrees to 350 Degrees F
- - Maximum Steam Pressure Rating: 150 psi
- - Conforms to ASTM-A-351 material standard and ANSI/ASME B1.20.1 thread standard
- - Overall Length: 37.6 mm
- - Includes no pre-applied thread sealant or additional seals
- - Outside Diameter: 2 inches
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 8.00
- Package Height: 8.00
- Package Weight: 42.00
