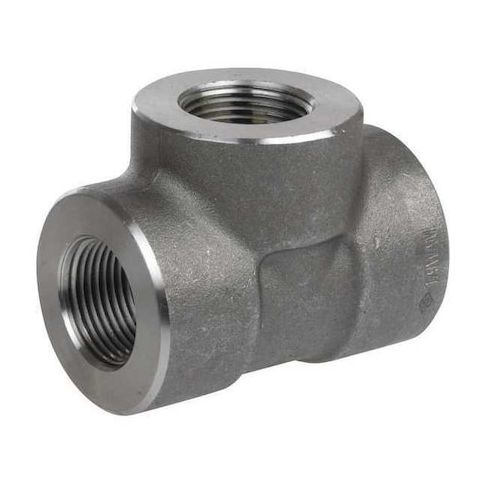

3/4" FNPT 316 SS Threaded Tee MPN:2UA34
Free Shipping
In Stock
This 3/4in FNPT 316 SS Threaded Tee is a high-performance pipe fitting designed for demanding applications. Constructed from 316 stainless steel, it offers exceptional corrosion resistance and durability. With female NPT connections on all three ends, it allows for flexible fluid or gas flow management, making it ideal for use in chemical processing, oil and gas, and pharmaceutical industries. Its Class 3000 pressure rating and steam rating of 2500 psi at 350°F ensure reliable performance in high-pressure environments. Its compact design and easy installation make it a valuable addition to any industrial piping system.
Top product features:
- 316 Stainless Steel construction
- Tee shape with three female threaded ends for joining three pipe runs
- Female FNPT connections allow for fluid or gas flow to be split or combined via a 90° branch
Top product applications:
- Industrial piping systems for chemical processing and manufacturing
- HVAC systems for commercial and residential buildings
- High-pressure steam distribution systems in power plants and industrial facilities
The ZORO SELECT - 2UA34 is a 3/4-inch stainless steel tee pipe fitting constructed from 316 stainless steel. This T-shaped fitting joins three pipe runs with female FNPT (National Pipe Thread Tapered) connections on all sides (A, B, and C), allowing fluid or gas flow to be split or combined via a 90° branch. It is rated for a Maximum operating pressure: 3000 psi at 100°F and a Steam pressure rating: 2500 psi at 350°F. The fitting meets material and thread standards ASTM A182, ANSI/ASME B1.20.1, and ASME B16.11, Design pressure rating: Class 3000. Key Features:
- - Material: 316 Stainless Steel
- - Shape: Tee with three female threaded ends
- - Connection type: Female NPT on all three ends
- - Nominal pipe size: 3/4 inch for all ports
- - Thread pitch: 14 threads per inch
- - Pressure rating: Class 3000, Maximum operating pressure: 3000 psi at 100°F
- - Steam pressure rating: 2500 psi at 350°F
- - Standards: ASTM A182 for material, ANSI/ASME B1.20.1 for threads, and ASME B16.11 certified
- - No pre-applied thread sealant or included seals
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.99
- Package Width: 1.81
- Package Height: 2.40
- Package Weight: 2.04
