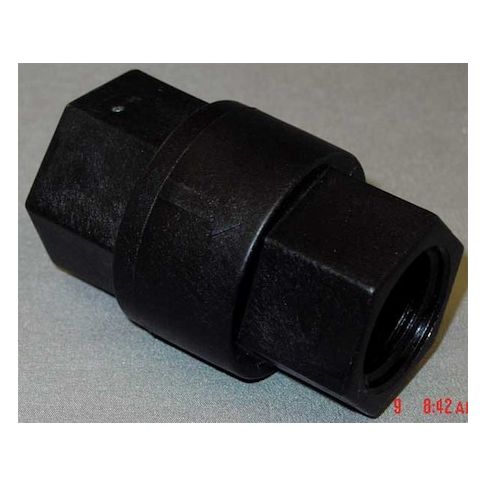

3/4" FNPT Ball Cone Spring Check Valve MPN:FP CHK 687-12F12F-B
Free Shipping
In Stock
The 3/4in FNPT Ball Cone Spring Check Valve from GoVets Select is a reliable and efficient solution for various applications. Suitable for use in horizontal or vertical orientations, this check valve features a glass-filled polypropylene body and Buna-N seal, ensuring durability and resistance to extreme temperatures (-20°F to 140°F). With a cracking pressure of 0.33 psi, it effectively prevents backflow and ensures smooth operation. Ideal for use in water supply systems, this valve can withstand up to 125 psi of water pressure, making it a great choice for plumbing, irrigation, and industrial applications where reliability and efficiency are crucial.
Top product features:
- Flow Design Single
- Mechanism and Body Design Inline Ball Cone
- Max. Water Pressure Valves 125 psi
Top product applications:
- Drainback applications for water treatment systems
- Water supply lines in residential and commercial buildings
- Industrial process control systems requiring precise fluid control
ZORO SELECT Series 687 check valve is an inline ball cone spring check valve for use in general-purpose backflow control applications in air and compatible fluid systems. It features a glass-filled polypropylene body, FNPT x FNPT female threaded connections, a single-flow design, and a spring-loaded poppet check mechanism. The valve can be mounted horizontally or vertically. Full flow: yes
- cracking pressure: 0.33 psi.
Key Features:
- Nominal size: 3/4 in
- Connection type: 3/4 in FNPT female threaded connections on both ends
- Body material: glass-filled polypropylene
- Seat material: glass-filled polypropylene
- Seal material: Buna-N
- Spring material: stainless steel
- Check mechanism: poppet
- Mechanism and body design: inline ball cone
- Flow design: single
- Full flow: yes
- Cracking pressure: 0.33 psi
- Cv rating: 12.5
- Maximum operating pressure: 125 psi
- Operating temperature range: -20 degrees F to 140 degrees F
- Mounting orientation: horizontal or vertical
- Dimensions: 2 1/2 in overall length
- 1 3/8 in overall height and width
- Hex size: 15/16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.00
- Package Height: 1.80
- Package Weight: 0.57
