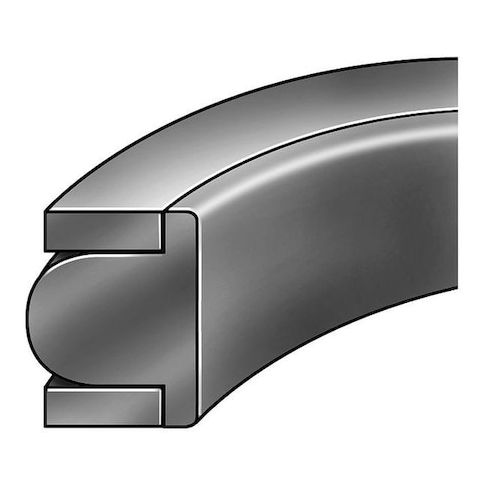

Piston Seal, 1 1/2 IDx1 3/4 OD, 1/8 Wx1/8H MPN:2JAX1
Piston Seal, 1 1/2 IDx1 3/4 OD, 1/8 Wx1/8H
This high-performance piston seal from GoVets Select is designed for use in a variety of applications, including hydraulic and pneumatic systems, where it can withstand extreme temperatures, high pressures, and fast speeds. The seal's nitrile material provides excellent durability and resistance to wear, while its T-seal design ensures a tight seal in piston grooves. With a maximum pressure rating of 5,000 psi and a temperature range of -35°F to 220°F, this seal is ideal for use in heavy-duty industrial equipment, such as pumps, cylinders, and valves. Its compact size and lightweight design make it easy to install and maintain.
Top product features:
- Seal material is Nitrile, providing resistance to oil, fuel, and other chemicals.
- Seal type is T-Seal, designed for high-pressure applications.
- Operating temperature range is -35 Degrees to 220 Degrees F, allowing for use in a variety of environments.
Top product applications:
- Piston Seal can be used in automotive applications such as engine cylinders.
- Piston Seal can be used in industrial applications such as pumps and hydraulic cylinders.
- Piston Seal can be used in medical applications such as pneumatic medical devices.
Piston T-Seal, Seal Type T-Seal, Seal Material Nitrile, For Bore Dia. 1 3/4 in, Seal Durometer 70 Shore A, Temp. Range -35 Degrees to 220 Degrees F, For Groove Width 0.187 in, For Piston Groove Dia. 1.507 in, Max. Speed 3 fps, Max. Pressure 5,000 psi, Backup Ring Material Nylon, Inside Dia. 1 1/2 in, Outside Dia. 1 3/4 in, Width 1/8 in, Height 1/8 in, Color Black
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.00
- Package Height: 0.30
- Package Weight: 0.10
Product info last updated on January 27, 2026 9:33am UTC
Category: Sealing and Gasketing
