1/2 in FNPT 304 Stainless Steel Coupling, Class 3000, Female-Female MPN:2UA51
Free Shipping
In Stock

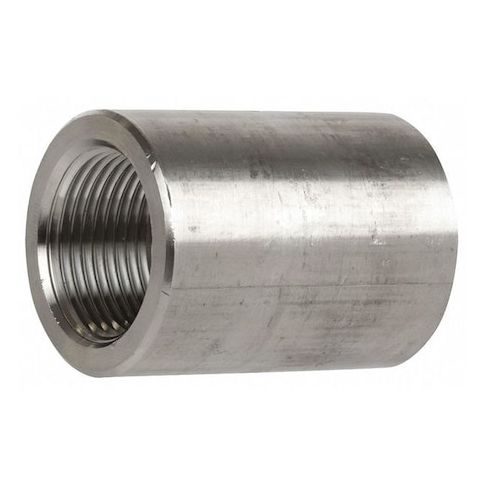

The ZORO SELECT - 2UA51 coupling is a high-performance, 304 stainless steel pipe fitting designed for joining pipes or tubes in a straight line, providing a continuous flow path. Ideal for use in applications requiring high pressure and temperature resistance, such as industrial piping, HVAC systems, and steam distribution. Its Class 3000 rating ensures reliable performance up to 3000 psi at 100°F internal pressure and 2500 psi at 350°F steam pressure. Durable and resistant to corrosion, this coupling is perfect for use in harsh environments, making it a reliable choice for a wide range of industrial and commercial applications.
Top product features:
- Made from 304 stainless steel, providing corrosion resistance and durability.
- Features FNPT connections on both ends, allowing for easy connection to other pipes or fittings.
- Conforms to ASME B16.11, meeting industry standards for pressure classification and ensuring reliable performance.
Top product applications:
- Hydraulic System Component
- Steam Power Generation Equipment
- Medical Gas Distribution Systems
The ZORO SELECT - 2UA51 coupling is a short, tubular stainless steel pipe fitting designed to join two pipes or tubes in a straight line, providing a continuous flow path. Made from 304 stainless steel, this coupling is rated for a maximum internal pressure of 3000 psi at 100°F and a maximum steam pressure of 2500 psi at 350°F. It features FNPT connections on both ends
- 1/2 inch nominal size
- 14 threads per inch
- conforms to ASME B16.11. The coupling's Class 3000 rating defines its pressure classification per industry standards.
Key Features:
- - Material: 304 Stainless Steel
- - Style: Coupling with female threaded connections on Side A and Side B
- - Connection Type: FNPT (Female National Pipe Thread)
- - Pipe Size: 1/2 inch nominal size on both ends
- - Thread Size: 14 threads per inch on both connections
- - Pressure Rating: Class 3000
- maximum 3000 psi at 100°F internal pressure
- - Maximum Steam Pressure: 2500 psi at 350°F
- - Standards: Material conforms to ASTM A182
- threads conform to ANSI/ASME B1.20.1
- meets ASME B16.11
- - Does not include pre-applied thread sealant or additional sealing components
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.10
- Package Width: 1.10
- Package Height: 1.89
- Package Weight: 0.29
