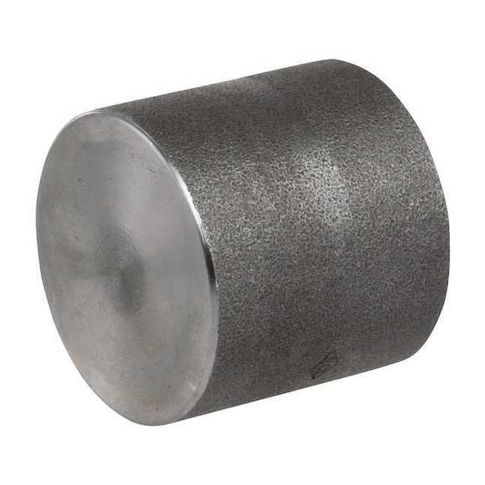

1/8" FNPT SS Threaded Cap MPN:4307000000
The ZORO SELECT 4307000000 is a high-performance stainless steel pipe cap designed for reliable pipe sealing and termination. Constructed from 304 stainless steel with FNPT connections, it features a Class 3000 pressure rating and maximum pressure capacity of 2,570 psi at 100°F. Ideal for use in various industries, including chemical processing, oil and gas, and pharmaceutical, this pipe cap provides corrosion resistance and durability. Its compact size and secure fitting engagement make it suitable for applications in tight spaces, while its compliance with ASME and ASTM standards ensures seamless integration with existing systems.
Top product features:
- Made from 304 stainless steel for corrosion resistance and durability.
- Rated for operation up to 2,570 psi at 100°F.
- Features FNPT (Female National Pipe Thread) connections for secure fitting engagement.
Top product applications:
- Pipe Sealing and Termination
- Pipe End Sealing in High-Pressure Applications
- Steam Pipe Termination in Industrial Settings
The ZORO SELECT - 4307000000 is a stainless steel pipe cap intended for pipe sealing and termination, helping to seal pipe ends. It features a Class 3000 pressure rating, with a maximum pressure capacity of 2,570 psi at 100°F, and a maximum steam pressure of 1,965 psi at 350°F. Constructed from 304 stainless steel with FNPT connections, rated for operation within specified pressure ranges. The fitting is designed for use with pipes with a 1/8 inch nominal diameter and an outside diameter of approximately 5/8 inch. The overall length is 3/4 inch.
Key Features:
- - Material: Made from 304 stainless steel for corrosion resistance and durability.
- - Pressure Rating: Class 3000, rated for operation up to 2,570 psi at 100°F.
- - Connection Type: FNPT (Female National Pipe Thread) for secure fitting engagement.
- - Nominal Pipe Size: 1/8 inch, with an outside diameter of approximately 5/8 inch.
- - Overall Length: 3/4 inch
- - Standards Compliance: Threads conform to ASME B1.20.1
- materials conform to ASTM A182
- dimensions conform to ASME B16.11.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.60
- Package Width: 0.60
- Package Height: 0.80
- Package Weight: 0.02
