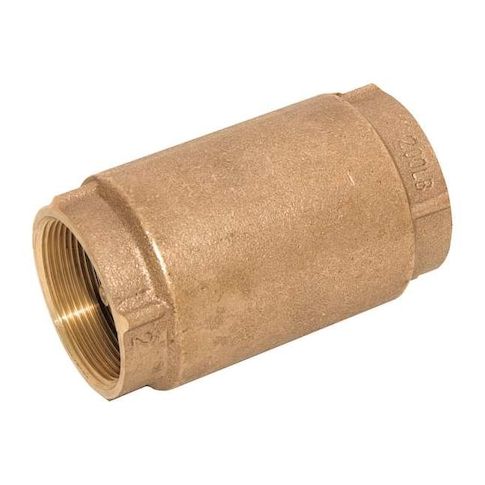

Spring Check Valve, Inline, 1/2 in, FNPT x FNPT, Bronze Body MPN:6AJY1
Free Shipping
In Stock
The GoVets Select 1/2in NPT Bronze Spring Check Valve is a reliable and efficient solution for general-purpose applications. Its single-flow design and inline spring mechanism ensure smooth operation and consistent performance. Made from bronze and 304 stainless steel, this valve withstands high temperatures up to 250°F and pressures up to 200 psi. Ideal for use in water supply systems, the valve allows for 9.2 gallons per minute of flow. Suitable for horizontal or vertical mounting, this valve is perfect for a wide range of applications, including plumbing, HVAC, and industrial processes.
Top product features:
- 1/2in NPT Bronze Spring Check Valve has a single flow design that allows for inline installation.
- The valve features an inline spring mechanism that provides a direct benefit to the user.
- The valve can withstand a maximum water pressure of 200 psi.
Top product applications:
- General Purpose
- General Service
- Steam Service
Zoro Select spring check valve with a 1/2 in nominal size and inline, spring-loaded design for water service. The spring-assisted check mechanism is intended to allow one-way flow and restrict reverse flow when installed in compatible applications within specified ratings. It features a bronze body, a 304 stainless steel internal spring and check mechanism, and FNPT x FNPT threaded connections for inline installation.
Key Features:
- Valve type: Spring-loaded inline check valve
- Size: 1/2 in nominal valve and pipe size
- Connections: FNPT x FNPT with female NPT ends on both sides
- Body material: Bronze
- Spring/check mechanism material: 304 stainless steel
- Cracking pressure: 1.7 psi
- Flow rating: 9.2 gpm
- Maximum pressure: 200 psi
- Maximum temperature: 250 degrees F
- Mounting: Horizontal or vertical with upward flow in vertical installations
- Dimensions: 2.41 in overall length, 1-17/64 in width, 2-13/32 in overall height
- Standards: ANSI B2.11, ASME B1.20.1
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.20
- Package Width: 2.80
- Package Height: 2.90
- Package Weight: 4.05
