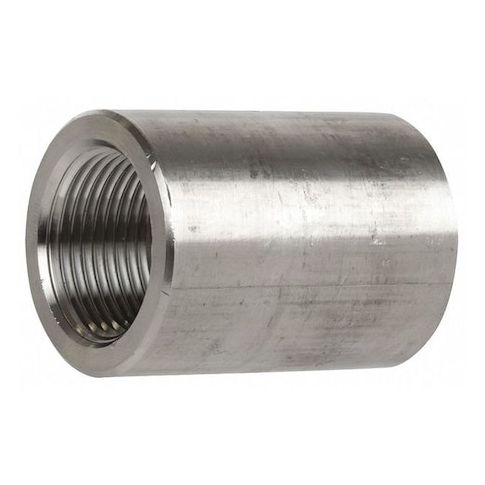

3/4 in FNPT Stainless Steel Coupling, Class 3000, 304 Grade, 2 in Overall Length MPN:4307000062
Connect and join 3/4-inch pipes or tubes with ease using the ZORO SELECT stainless steel coupling. Constructed from 304-grade stainless steel, this coupling features female threaded connections on both ends, conforming to ASME B1.20.1 standards. Rated for Class 3000 pressure applications, it supports high-pressure systems, making it ideal for plumbing, process, and industrial use. The coupling's durable design ensures reliable performance in demanding environments, while its compact 2-inch overall length makes it perfect for tight spaces. With its high-pressure rating and corrosion-resistant material, this coupling is a reliable choice for various applications, including steam, water, and gas systems.
Top product features:
- 304 Stainless Steel construction with compliance to ASTM A182
- Female NPT threads on both ends conforming to ASME B1.20.1 standards
- Class 3000 pressure rating with maximum pressures of 2570 psi @ 100°F (internal) and 1965 psi @ 350°F (steam)
Top product applications:
- Plumbing systems
- Process systems
- High-pressure systems
The ZORO SELECT - 4307000062 is a stainless steel coupling designed to connect two 3/4-in pipes or tubes in a straight line. Constructed from 304 stainless steel, it features female threaded connections on both ends with FNPT (National Pipe Tapered Female) threads conforming to ASME B1.20.1 standards. The coupling is rated for Class 3000 pressure applications, supporting a maximum pressure of 2570 psi at 100°F and a maximum steam pressure of 1965 psi at 350°F. This fitting is rated for use in plumbing, process, and high-pressure systems.
Key Features:
- - Material: 304 Stainless Steel with compliance to ASTM A182
- - Size: 3/4 in nominal pipe size on both ends
- - Connection Type: Female NPT threads on Side A and Side B
- - Pressure Rating: Class 3000 with maximum pressures of 2570 psi @ 100°F (internal) and 1965 psi @ 350°F (steam)
- - Dimensions: 2 in overall length
- 1-21/64 in outside diameter
- - Standards: Threads per ASME B1.20.1 NPT
- dimensions per ASME B16.11
- - Does not include pre-applied thread sealant or seals
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.40
- Package Height: 1.40
- Package Weight: 0.43
