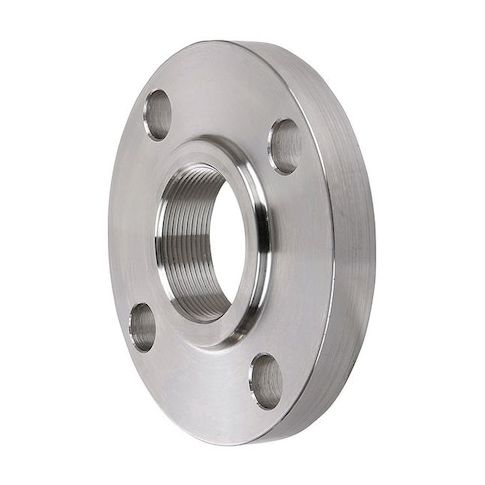

1-1/4" FNPT SS Threaded Flange MPN:4381006030
Elevate your industrial piping systems with the ZORO SELECT 4381006030, a forged stainless steel threaded flange designed for reliable and leak-free connections. Made from corrosion-resistant 316/316L stainless steel, this flange withstands pressures up to 720 psi, making it suitable for various industrial applications, including steam, water, and gas systems. Its raised face connection surface and Class 300 pressure rating ensure secure assembly and disassembly of piping systems. Ideal for use in chemical processing, power generation, and oil and gas industries, this flange provides a long-lasting and cost-effective solution for maintaining efficient and safe operations.
Top product features:
- Forged from 316/316L stainless steel for corrosion-resistant material
- Has a raised face connection surface
- Meets Class 300 pressure rating with a maximum operating pressure of 720 psi
Top product applications:
- Forging and casting applications where high corrosion resistance is required
- High-pressure steam system connections in power plants and industrial facilities
- Chemical processing and oil refining applications where resistance to corrosion and high temperatures is essential
The ZORO SELECT - 4381006030 is a forged stainless steel threaded flange suitable for creating bolted flange connections within specified parameters by screwing the internal threads onto the male threads of a pipe. Made from forged 316/316L stainless steel, this flange has corrosion-resistant material suitable for use within systems operating at pressures up to specified limits
- not intended as a guarantee of performance under all conditions. It features a raised face connection surface and is suitable for assembling and disassembling piping systems with nominal pipe size 1 1/4 inches, meeting the nominal pressure rating of Class 300 as per applicable standards.
Key Features:
- - Material: Forged 316/316L stainless steel
- - Type: Threaded flange with internal threads (FNPT connection)
- - Nominal pipe size: 1 1/4 in
- - Pressure rating: Class 300 with a maximum operating pressure of 720 psi
- - Maximum steam pressure: 300 psi at specified temperature conditions
- - Flange dimensions: 5 1/4 in outside diameter, 3/4 in thickness, and 1 1/16 in overall length
- - Bolt configuration: 4 bolt holes, each 3/4 in diameter, with a bolt circle diameter of 4 1/2 in
- - Connection surface: Raised face
- - Standards: ASTM-SA182
- ANSI B16.5
- ASME B1.20.1
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.50
- Package Height: 1.00
- Package Weight: 4.10
