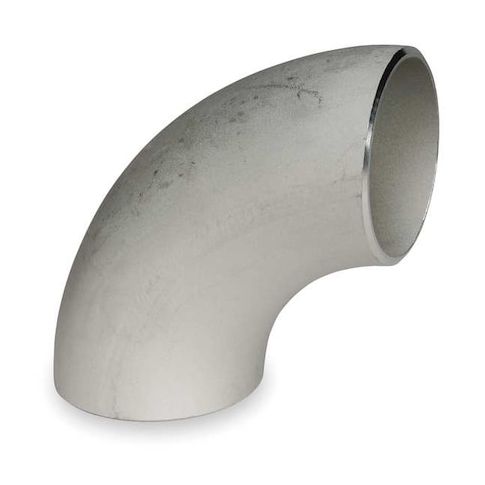

1-1/2 in Stainless Steel 304L Butt Weld Schedule 40 Long Radius 90° Elbow MPN:4381017840

The ZORO SELECT - 4381017840 is a 90 Degree Long Radius Elbow stainless steel pipe fitting made from 304L stainless steel. It is designed to connect two pipes of 1-1/2" nominal size via butt weld connections, creating a 90-degree change in flow direction with a centerline radius 1.5 times the pipe diameter. This fitting is compatible with Schedule 40 pipe thickness and corrosion resistance inherent to 304L stainless steel with a centerline radius: 1.5D.

Key Features:

• - Material: 304L stainless steel.
• - 90° bend with a centerline radius of 1.5D.
• - Connection Type: Butt Weld ends on both sides (Side A and Side B).
• - Nominal Pipe Size: 1-1/2" connections on both ends.
• - Pipe Schedule: Schedule 40, suitable for standard wall thickness piping systems.
• - Overall Length: 4-1/2".
• - Conforms to ASTM A403/A standards for dimensions and materials.
• - Color: Silver, typical of stainless steel finish.
