Ultrasonic Insert, #4-40, 9/64 in L, 0.159 in Insert Dia., 0.153 in Tapered End Dia., Brass, 100 PK MPN:TH-004-SV-PK100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2221387

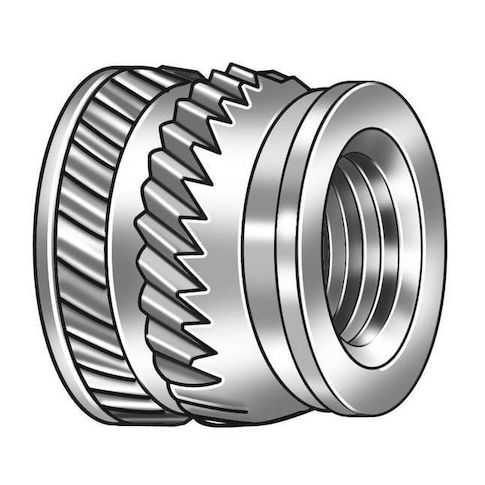

Ultrasonic Insert, #4-40, 9/64 in L, 0.159 in Insert Dia., 0.153 in Tapered End Dia., Brass, 100 PK
Elevate your thermoplastic projects with the GoVets Select Ultrasonic Insert, a precision-crafted brass solution for demanding applications. This #4-40 heat-set insert features a tapered end diameter of 0.153 in and a maximum hole diameter of 0.159 in, ensuring a secure fit in materials as thin as 3/32 in. With its pull-out resistance and flush flange style, this insert provides reliable performance in high-temperature and high-stress environments. Suitable for use in thermoplastic materials, it's ideal for applications such as industrial manufacturing, automotive, and aerospace, where durability and precision are paramount.
Top product features:
- Pull-Out Resistance
- Tapered End Diameter of 0.153 in for secure threading
- Flush Flange Style for smooth surface finish
Top product applications:
- Thermoplastic assembly
- Electrical connections in thermoplastic materials
- Plastic injection molding
Heat-Set Insert, Insert Type Heat-Set Insert, System of Measurement Inch, Insert Diameter 11/64 in, Overall Length 9/64 in, Thread Size #4-40, Thread Direction Right Hand, Thread Type Coarse, Material Brass, Shank Type Tapered, Tapered End Diameter 0.153 in, Flange Style Flush, Number of Vanes 1, Compatible Material Thermoplastic, Drill Bit Size 0.153 in, Minimum Material Thickness 3/32 in, Maximum Hole Diameter 0.159 in, Features Pull-Out Resistance, Finish Plain
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.00
- Package Width: 0.50
- Package Height: 0.50
- Package Weight: 0.05
Product info last updated on April 6, 2026 1:26pm UTC
Category: Threaded Inserts
