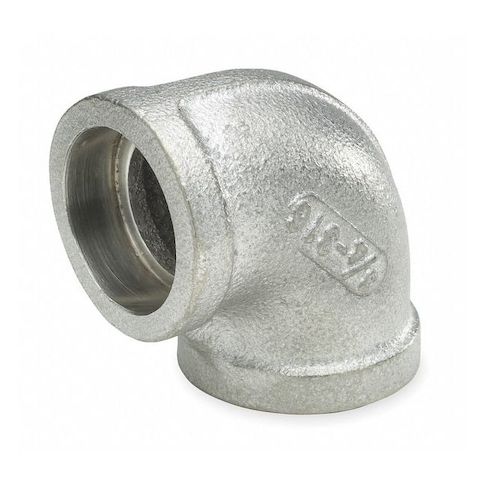

2 in Stainless Steel 90° Socket Weld Elbow, Class 3000, 304L, Schedule 80 MPN:4307004320

• The ZORO SELECT - 4307004320 is a 2-inch 90 Degree Elbow stainless steel pipe fitting designed to connect two pipes at a right angle (90°) to change the direction of flow. It features socket weld ends on both sides. Material: 304 stainless steel. Pressure rating: Class 3000

• maximum internal pressure: 3000 psi. Maximum steam pressure: 2810 psi @ 350°F. The fitting’s overall length is 4 3/16 inches. Outside diameter: 2-57/64 inches.

  Key Features:

  • - Material: 304 stainless steel.
  • - Socket weld ends on both sides.
  • - Nominal Pipe Size: 2 inches on both Side A and Side B ends.
  • - Pressure rating: Class 3000
  • maximum internal pressure: 3000 psi.
  • - Maximum steam pressure: 2810 psi @ 350°F.
  • - Outside diameter: 2-57/64 inches.
  • - Overall length: 4 3/16 inches.
  • - Conformance: ASTM A182
  • ASME B16.11.
  • - Includes no pre-applied thread sealant or sealing components.
