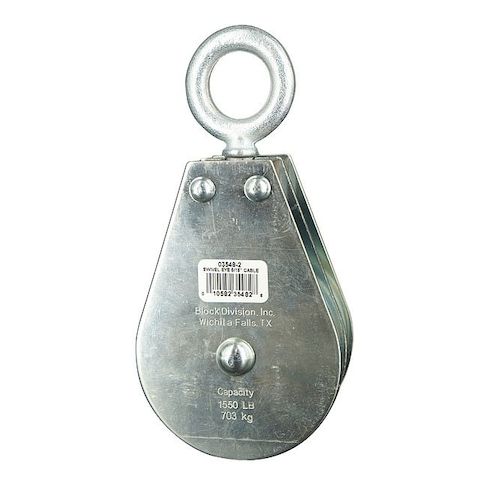

Pulley Block, Wire Rope, 5/16 in Max Cable Size, 1, 550 lb Max Load, Zinc Plated MPN:03548-2-C
Pulley Block, Wire Rope, 5/16 in Max Cable Size, 1, 550 lb Max Load, Zinc Plated
Elevate your lifting and pulling operations with the GoVets Select Pulley Block, designed for heavy-duty use with wire rope up to 5/16 inches in diameter. This rugged pulley block features a zinc-plated carbon steel housing and a steel sheave with a 3-inch inside diameter, ensuring smooth and efficient operation. With a maximum load capacity of 1,550 pounds and a swivel eye attachment, this pulley block is perfect for industrial, construction, and heavy lifting applications, including hoisting, pulling, and towing. Its compact design and upright mount make it easy to integrate into your existing systems, providing reliable performance and added versatility.
Top product features:
- It has a swivel pulley type that allows for smooth and easy rotation of the wire rope.
- It has a maximum load capacity of 1,550 pounds, providing a safe and reliable lifting experience.
- It has a steel sheave with a 3-inch inside diameter and 5/8-inch depth, which helps to reduce wear and tear on the wire rope.
Top product applications:
- Cranes and Hoists
- Construction Equipment
- Marine Equipment
Pulley Block, Product Type Pulley Block, Pulley Type Swivel, Mount Type Upright Mount, Working Load Limit 1,550 lb, Operation Pulling, Attachment Type Swivel Eye, Compatible Rope Diameter 5/16 in, Sheave Inside Diameter 3 in, Sheave Depth 5/8 in, Sheave Outside Diameter 3 1/8 in, Compatible Rope Type Wire Rope, Bearing Type Sleeve, Attachment Inside Diameter 1 3/16 in, Housing Material Carbon Steel, Mounting Hole Diameter 1 3/16 in, Number of Grooves 2, Sheave Material Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.20
- Package Width: 5.60
- Package Height: 2.50
- Package Weight: 5.03
Product info last updated on January 31, 2026 9:56am UTC
Category: Lifting, Pulling and Positioning
