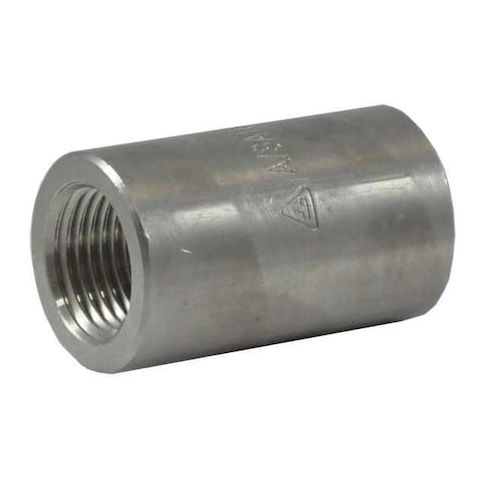

Reducing Coupling, 1 in x 3/4 in FNPT, 304 Stainless Steel, Class 3000 MPN:2UA87
Free Shipping
In Stock
The ZORO SELECT - 2UA87 is a high-quality stainless steel reducing coupling designed for joining pipes of different diameters. Constructed from 304 stainless steel, this corrosion-resistant fitting is ideal for applications where a compact and reliable connection is required. Suitable for use in steam, water, and gas systems, it meets ASME B16.11 standards and conforms to ASTM A182 and ANSI/ASME B1.20.1 specifications. With a Class 3000 pressure rating and maximum steam pressure of 2500 psi @ 350°F, this reducing coupling is perfect for use in industrial settings, such as power plants, chemical processing, and oil refineries.
Top product features:
- 304 Stainless Steel construction
- Joins 1 inch and 3/4 inch pipes with female NPT threaded connections
- Meets ASME B16.11 standards for corrosion-resistant connections
Top product applications:
- Water Supply Systems
- Steam Distribution Systems
- Hydraulic Piping Systems
The ZORO SELECT - 2UA87 is a stainless steel reducing coupling designed to join two pipes of different diameters, providing a compact and corrosion-resistant connection. Constructed from 304 stainless steel, this fitting accommodates pipe sizes of 1 inch and 3/4 inch with female NPT threaded connections on both ends. It conforms to ASTM A182 for material, ANSI/ASME B1.20.1 for threads, and meets ASME B16.11 standards.
Designed and manufactured to meet applicable standards and specifications.
Key Features:
- - Material: 304 Stainless Steel
- - Fitting Type: Reducing Coupling joining 1" to 3/4" pipe sizes
- - Connection: Female NPT threads on both sides (Side A and Side B)
- - Pressure Rating: Class 3000, up to 3000 psi @ 100°F
- - Maximum Steam Pressure: 2500 psi @ 350°F
- - Thread Sizes: Side A - 11 1/2 TPI, Side B - 14 TPI
- - Standards: ASTM A182 material, ANSI/ASME B1.20.1 threads, and ASME B16.11 compliance
- - No pre-applied thread sealant or included seal
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.73
- Package Width: 1.73
- Package Height: 2.36
- Package Weight: 0.86
