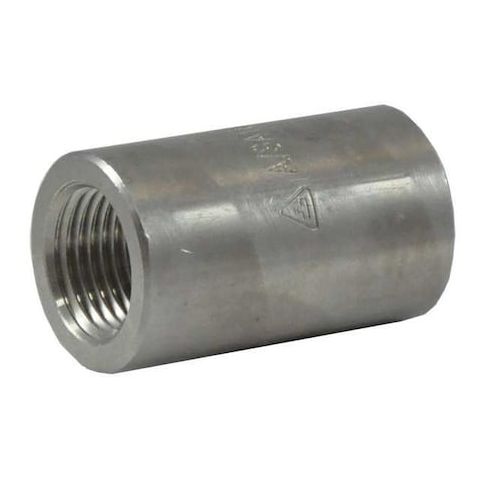

Reducing Coupling, 3/8 in x 1/4 in FNPT, 304 Stainless Steel, Class 150 MPN:2UA80

• The ZORO SELECT - 2UA80 is a stainless steel reducing coupling that connects two pipes of different diameters. Material: 304 stainless steel. Maximum pressure rating: 3000 psi at 100°F

• steam pressure rating: 2500 psi at 350°F. This coupling features female NPT threaded connections on both ends, with nominal pipe sizes of 3/8 inch on Side A and 1/4 inch on Side B. It conforms to ASTM-A-182 material standards and ANSI/ASME threading and pressure-class specifications. Key Features:

  • - Material: 304 stainless steel
  • - Type: Reducing Coupling with female threaded (FNPT) connections on both ends
  • - Nominal pipe sizes: 3/8" on Side A and 1/4" on Side B
  • - Connection thread: 18 threads-per-inch NPT on both ends
  • - Pressure rating: Class 3000
  • max pressure 3000 psi @ 100°F
  • max steam pressure 2500 psi @ 350°F
  • - Standards: ASTM-A-182 for material
  • ANSI/ASME B1.20.1 for threads
  • meets ASME B16.11
  • - Does not include pre-applied thread sealant or additional sealing components
