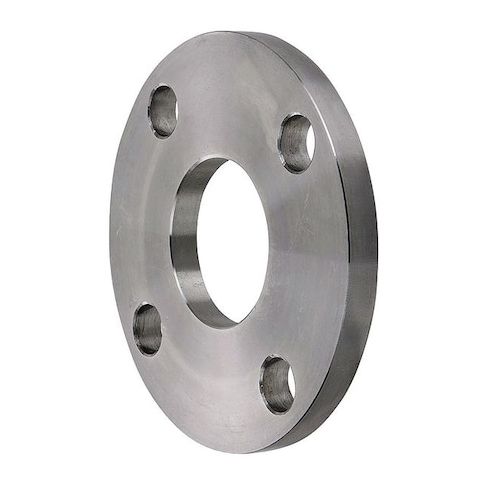

2" Lap Joint SS Lap Joint Flange MPN:4381005230
The ZORO SELECT 4381005230 is a high-quality, forged lap joint flange designed for use in stainless-steel piping systems requiring frequent dismantling or alignment flexibility. Its free-rotating design allows for easy bolt-hole alignment and assembly, making it ideal for applications where piping systems need to be frequently adjusted. Suitable for use in pressure applications conforming to ANSI B16.5 Class 300 specifications, this flange is rated for a maximum design pressure of 720 psi and maximum steam pressure of 300 psi. Its use is particularly beneficial in industries such as chemical processing, oil and gas, and food and beverage, where flexibility and reliability are crucial.
Top product features:
- Forged 316/316L stainless steel alloy provides corrosion resistance and durability.
- The lap joint flange design allows for free rotation over matching stub ends for bolt-hole alignment and assembly flexibility.
- The flange is rated for use in piping systems operating within specific pressure and temperature ranges, making it suitable for applications that require frequent dismantling or alignment flexibility.
Top product applications:
- Stainless steel piping systems requiring frequent dismantling or alignment flexibility
- Applications involving high-pressure steam or corrosive substances that require resistance to corrosion
- Industrial processes that require a high degree of flexibility and ease of assembly, such as power generation or chemical processing
The ZORO SELECT - 4381005230 is a forged lap joint flange designed for use with matching stub ends welded to pipes, allowing flange rotation for bolt-hole alignment and assembly. Made from forged 316/316L stainless steel, this flange is suited for stainless-steel piping systems requiring frequent dismantling or alignment flexibility. It has a nominal pipe size of 2 inches, complies with ASTM-SA182 and ANSI B16.5 standards, and is rated for pressure applications conforming to ANSI B16.5 Class 300 specifications, with a maximum design pressure of 720 psi and maximum steam pressure of 300 psi.
Key Features:
- - Material: Forged 316/316L stainless steel alloy.
- - Flange type: Lap joint flange allowing free rotation over matching stub ends.
- - Nominal pipe size: 2 inches.
- - Pressure rating: suitable for use in piping systems operating within the specified pressure and temperature ranges.
- - Maximum steam pressure: 300 psi.
- - Flange outside diameter: 6 1/2 inches.
- - Bolt circle diameter: 5 inches, with 8 bolt holes of 3/4 inch diameter.
- - Flange thickness: 7/8 inch
- overall length: 1 5/16 inches.
- - Connection type and surface: Lap joint.
- - Complies with ASTM-SA182 and ANSI B16.5 standards.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 6.50
- Package Height: 1.30
- Package Weight: 6.45
