Rivet Nut, #10-24 Thread Size, 0.34 in Flange Dia., 0.475 in L, Steel, 100 PK MPN:CAK2-1024-130-100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2107589
Rivet Nut, #10-24 Thread Size, 0.34 in Flange Dia., 0.475 in L, Steel, 100 PK

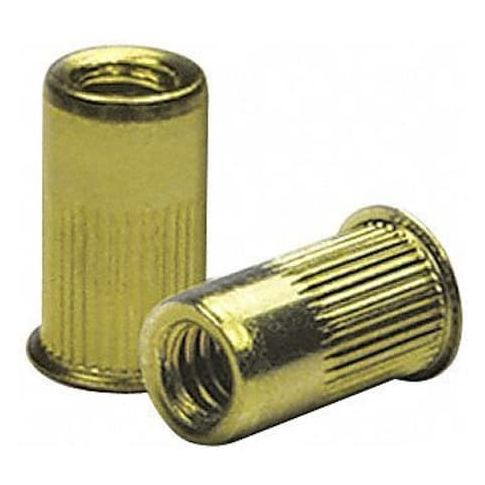

The Rivet Nut from GoVets Select is a versatile fastening solution for metal applications. With a #10-24 thread size and 0.34 in flange diameter, it provides a secure hold in a variety of materials. Its knurled body and zinc yellow finish ensure easy installation and corrosion resistance. Ideal for use in industries such as aerospace, automotive, and construction, this rivet nut is perfect for applications where a blind hole is not feasible. Its compact design and high-strength steel construction make it an excellent choice for use in metal panels, frames, and other metal components.
Top product features:
- Thread Size #10-24 provides a secure fit for coarse threads
- Flange Diameter 0.34375 in allows for flush installation
- Zinc Yellow finish provides corrosion resistance
Top product applications:
- Automotive repair, such as installing trim panels or replacing dashboard components
- Furniture assembly, like attaching metal frames or legs to wooden parts
- Machine building, including securing metal plates or covers to equipment frames
Rivet Nut, System of Measurement Inch, Insert Diameter 19/64 in, Overall Length 1/2 in, Installed Length 5/16 in, Thread Size #10-24, Thread Type Coarse, Flange Diameter 0.34375 in, Flange Thickness 0.019 in, Material Steel, Material Grade/Class 1008/1010, Finish Zinc Yellow, Body Texture Knurled, Compatible Material Metal, Drill Bit Size 19/64 in, Maximum Hole Diameter 0.297 in, Minimum Material Thickness 0.02 in, Maximum Material Thickness 0.13 in, Insert Nut Type Rivet Nut, Body Type Round
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.50
- Package Width: 2.00
- Package Height: 1.10
- Package Weight: 0.45
Product info last updated on March 16, 2026 12:31am UTC
Category: Rivets
