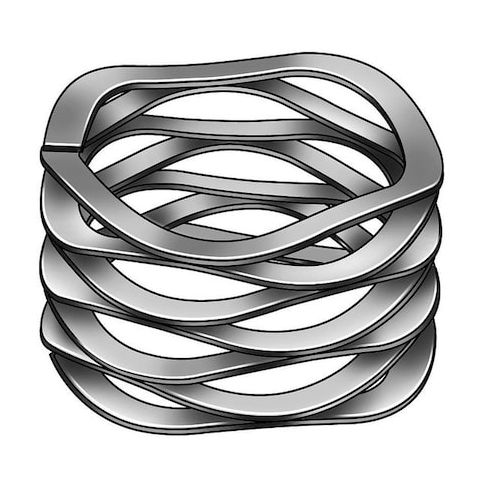

Disc Spring, Poly Wave Comp, 0.6 MPN:1UAY7
Disc Spring, Poly Wave Comp, 0.6
The GoVets Select Disc Spring offers a compact and reliable solution for compression applications. Made from 17-7 PH stainless steel, this disc spring provides a high load capacity of 25 lbs with minimal deflection of 0.188 inches. Its spring rate of 133 lbs/in makes it ideal for precision applications. Suitable for use in various industries, including aerospace and medical, this disc spring is designed for rod sizes up to 1/4 in and hole sizes up to 7/8 in. Its compact size and high load capacity make it a reliable choice for applications requiring precise compression.
Top product features:
- Material is 17-7 PH Stainless Steel
- Thickness is 0.015 In
- Compresses to 0.188 In under a 25 Lb load
Top product applications:
- Valve actuation in hydraulic systems
- Pressure relief in pneumatic cylinders
- Vibration isolation in precision machinery
Disc Spring, Poly Wave Compression, 17-7 PH Stainless Steel, Thickness 0.015 In, Overall Height 0.583 In, For Hole Size 7/8 In, For Rod Size 1/4 In, Load 25 Lbs, Deflection @ Load 0.188 In, Spring Rate 133 Lbs/In, Meets/Exceeds AISI Type 17-7 PH
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 0.70
- Package Weight: 0.01
