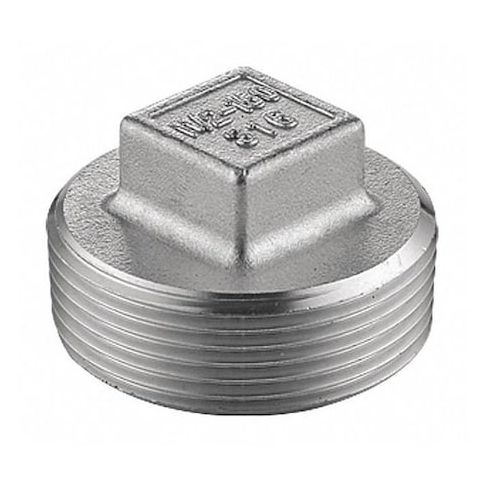

1-1/2 in MNPT 304 Stainless Steel Square Head Plug, Class 150 MPN:40SQ112N112
The ZORO SELECT 40SQ112N112 is a reliable and versatile stainless steel square head plug designed for threaded pipe systems requiring a Class 150 pressure rating. Its 304 stainless steel construction ensures durability and resistance to corrosion, making it suitable for a wide range of industrial applications, including plumbing, HVAC, and chemical processing. The plug's 2-inch square drive head provides a secure grip for installation and removal, while its 1-1/2 inch nominal pipe size and 300 psi maximum operating pressure make it an ideal solution for various piping configurations and operating conditions.
Top product features:
- 304 Stainless Steel construction provides corrosion resistance
- Square head drive allows for easy installation and removal with a wrench
- Meets ASTM A-351, ANSI/ASME B1.20.1 threads, and MSS-SP-114 Class 150 standards for reliable performance
Top product applications:
- Pipe closure for the end of a threaded pipe
- Pipe coupling or fitting closure
- Closure for the end of a threaded pipe or fitting in a Class 150 pressure rated system
The ZORO SELECT - 40SQ112N112 is a stainless steel square head plug that provides closure for the end of a threaded pipe, coupling, or fitting. Constructed from 304 stainless steel material, it is compatible with threaded pipe systems requiring a Class 150 pressure rating. The plug features a 2-inch square drive head which provides a flat wrenching surface for installation and removal. It has a nominal pipe size of 1-1/2 inches and is rated for a maximum operating pressure of 300 psi within a temperature range of -20 to 350 Degrees F. The fitting connections are male National Pipe Thread (MNPT) type with an 11 1/2 thread size on side A.
Key Features:
- - Material: 304 Stainless Steel
- - Fitting Shape: Square Head Plug
- - Connection Type: Male National Pipe Thread (MNPT)
- - Nominal Pipe Size: 1-1/2 inches
- - Pressure Class: Class 150, max operating pressure 300 psi
- - Temperature Range: -20 Degrees to 350 Degrees F
- - Plug Drive Style: 2-inch square head for wrench engagement
- - Standards: Meets ASTM A-351, ANSI/ASME B1.20.1 threads, and MSS-SP-114 Class 150
- - Overall Length: 40.3 mm
- - Includes no pre-applied thread sealant or sealing components
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 1.50
- Package Weight: 0.35
