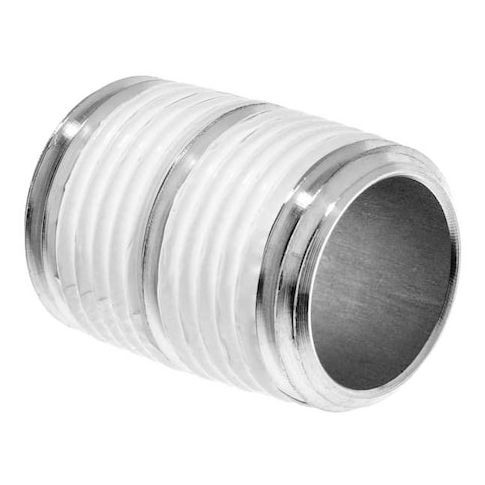

PipeNipple, SS, 1/2", NPTxNPT, 11/8" MPN:ZUSA-PF-2668
Free Shipping
In Stock
Connect your industrial piping systems with confidence using the ZORO SELECT - ZUSA-PF-2668 stainless steel nipple. Engineered for use with Schedule 40 piping, this 316-grade stainless steel fitting features male close threads with NPT standards on both ends, ensuring a secure connection. With a maximum operating pressure of 150 psi at 72°F and 150 psi steam at 360°F, it's suitable for a wide range of applications, including chemical processing, oil and gas, and food and beverage industries. Its corrosion-resistant properties and durable construction make it an ideal choice for harsh environments, providing long-lasting performance and reliability.
Top product features:
- Material Grade: 316 stainless steel for corrosion resistance.
- Fully threaded with male close threads on both ends, thread type NPT.
- Manufactured with electric resistance welded pipe construction.
Top product applications:
- Connecting two female-threaded fittings
- Connecting valves to pipes
- Connecting pipes to pipes
The ZORO SELECT - ZUSA-PF-2668 is a stainless steel nipple designed to connect two female-threaded fittings, valves, or pipes. Made from 316-grade stainless steel with welded construction, it is compatible with Schedule 40 piping and features male close threads with NPT standards on both ends. It is rated for use with media compatible with 316 stainless steel 1/2-inch NPT nipples and Schedule 40 piping, within the specified limits of 150 psi at 72°F and 150 psi steam at 360°F.
Key Features:
- - Material Grade: 316 stainless steel for corrosion resistance.
- - Nominal Pipe Size: 1/2 inch with 5/8 inch inside diameter and 27/32 inch outside diameter.
- - Overall Length: 1 1/8 inches.
- - Wall Thickness: 0.109 inch.
- - Fully threaded with male close threads on both ends, thread type NPT.
- - Manufactured with electric resistance welded pipe construction.
- - Maximum Operating Pressure: 150 psi at 72°F and maximum steam pressure of 150 psi at 360°F.
- - Meets standards ANSI/ASME B1.20.1, ASTM A312, and ASTM A733.
- - Resistance properties include abrasion, chemical, corrosion, diesel, oil, and UV resistance.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.80
- Package Width: 0.80
- Package Height: 1.40
- Package Weight: 0.05
