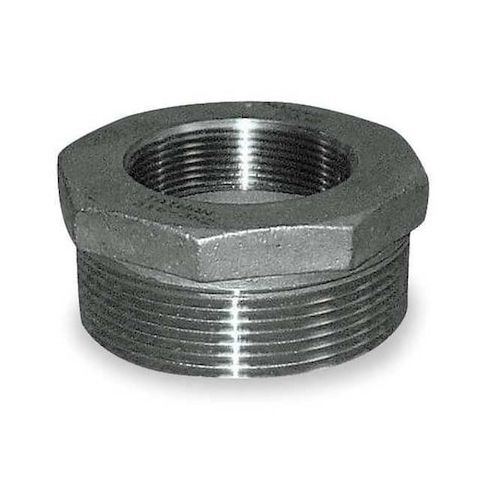

3 in x 1-1/2 in Stainless Steel Hex Reducing Bushing, Male NPT x Female NPT, Class 150 MPN:4381035260

• The ZORO SELECT - 4381035260 is a hex reducing bushing made from 316 stainless steel that connects 1-1/2 in male NPT to 3 in female NPT. Hexagonal outer profile for wrench tightening

• no claim of leak resistance is made by the specification. Material: 316 stainless steel. The fitting connects a 3-inch female-threaded pipe to a 1-1/2 inch male-threaded pipe and conforms to ASTM-A-351, ASME B1.20.1 for threads, and MSS-SP-114 Class 150 pressure ratings. Key Features:
  • - Material: 316 stainless steel.
  • - Connection Type: Male NPT on the smaller end (1-1/2 in) x Female NPT on the larger end (3 in).
  • - Pressure Rating: Class 150 with a maximum operating pressure of 300 psi at 150°F.
  • - Shape: Hex reducing bushing with a hex size of 3 3/4 inches for wrench tightening.
  • - Overall Length: 1 15/16 inches
  • Outside Diameter: 1-21/32 inches at the connection end.
  • - Thread Sealant: No pre-applied thread sealant included
  • no additional seal provided.
  • - Standards: Meets ASTM-A-351 for material, ASME B1.20.1 for threads, and MSS-SP-114 for pressure ratings.
