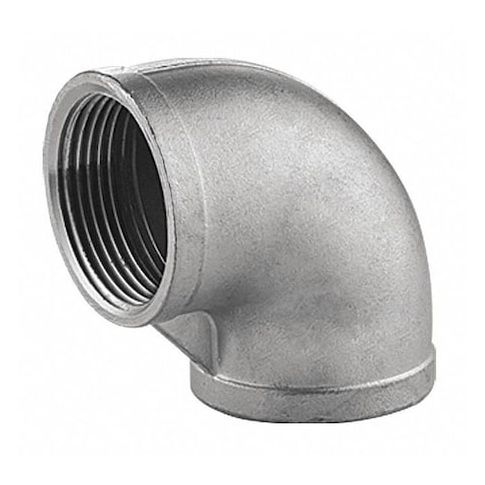

3" FNPT 316 SS 90 Degree Elbow MPN:609E111N030
Transform your piping systems with the ZORO SELECT - 609E111N030, a high-performance 3-inch 90-degree elbow pipe fitting made from durable 316 stainless steel. Ideal for applications where a right-angle change in flow direction is required, this fitting is compatible with a wide range of fluids and meets Class 150 pressure standards. With a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi, this elbow is perfect for use in industrial, commercial, and residential settings, including HVAC, plumbing, and chemical processing systems. Its silver finish and NPT threaded connections ensure a reliable and long-lasting connection.
Top product features:
- Constructed from 316 stainless steel for resistance to corrosion and durability
- Features threaded female connections on both ends with National Pipe Taper (NPT) threads sized at 8 threads per inch for secure connections
- Rated to Class 150 pressure standards, supporting a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi for safe and reliable performance
Top product applications:
- Pipe connections in chemical processing plants
- Steam distribution systems
- Piping systems for high-temperature applications
The ZORO SELECT - 609E111N030 is a 3-inch stainless steel 90 Degree Elbow pipe fitting designed to connect two pipes at a right angle, enabling a 90° change in flow direction. Constructed from 316 stainless steel, this fitting is compatible with listed fluids within the material compatibility and pressure/temperature specifications of the product (316 stainless steel
- Class 150 rating
- 300 psi max operating pressure
- 150 psi max steam pressure). It features threaded female connections on both ends with National Pipe Taper (NPT) threads sized at 8 threads per inch. The fitting is rated to Class 150 pressure standards, supporting a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi, and complies with ANSI B1.20.1 thread standards. Key Features:
- - Material: 316 Stainless Steel
- - Connection Type: Female NPT threaded ends on both sides
- - Nominal Pipe Size: 3 inches on Side A and Side B
- - Thread Size: 8 TPI (threads per inch) on both connection ends
- - Pressure Rating: Class 150 with maximum operating pressure of 300 psi
- - Maximum Steam Pressure: 150 psi
- - Applications limited to fluids within the material compatibility and pressure/temperature specifications (316 stainless steel
- Class 150
- 300 psi max operating pressure
- 150 psi max steam pressure)
- - Color: Silver finish
- - Includes no pre-applied thread sealant or seal
- - Meets ANSI Standards B1.20.1 for threading
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.80
- Package Width: 20.80
- Package Height: 16.00
- Package Weight: 19.60
