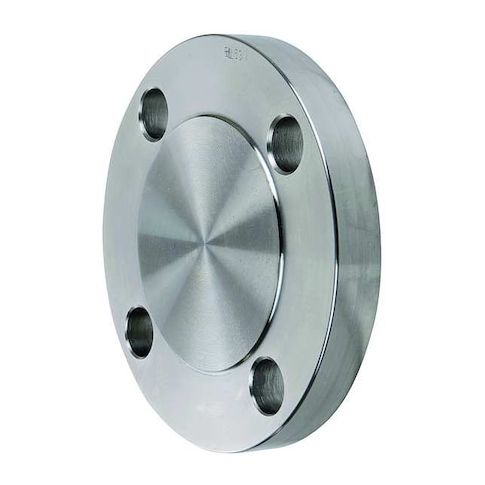

2-1/2" Welded SS Blind Flange MPN:4381005060
The ZORO SELECT 4381005060 stainless steel blind flange is a reliable solution for pressurized piping systems and steam applications. Rated for use up to 720 psi and 300 psi respectively, this forged 316/316L stainless steel flange provides a sealed termination point and facilitates maintenance or pressure testing when removed. Its corrosion-resistant properties make it ideal for use in harsh environments. Suitable for applications in chemical processing, oil and gas, and power generation, this blind flange is a valuable addition to any industrial setup, ensuring safe and efficient operation while withstanding high pressures and temperatures.
Top product features:
- The product provides a sealed termination point within its rated pressure range.
- It facilitates maintenance or pressure testing when removed.
- It is rated for use in pressurized piping systems up to 720 psi and steam up to 300 psi.
Top product applications:
- Pipe closure device for maintenance or pressure testing
- Sealed termination point in pressurized piping systems up to 720 psi
- Flat closure device for valves or pressure vessels
The ZORO SELECT 4381005060 stainless steel blind flange is rated for use in pressurized piping systems up to 720 psi and steam up to 300 psi.
It serves as a flat closure device for pipe, valves, or pressure vessels, with the inherent corrosion resistance of 316/316L stainless steel, and it facilitates maintenance or pressure testing when removed.
It provides a sealed termination point within its rated pressure range.
Key Features:
- - Material: Forged stainless steel (316/316L)
- - Connection Type: Bolted flange connection
- - Standard Ratings: ASTM-SA182, ANSI B16.5
- - Pressure Rating: Max. pressure 720 psi
- Max. steam pressure 300 psi
- Maximum operating pressure 720 psi
- - Diameter: Outside diameter 7-1/2 in
- Bolt circle diameter 5-7/8 in
- Flange thickness 1 in
- - Bolt Holes: 8 bolt holes, each 7/8 in diameter
- - Nominal Pipe Size: 2-1/2 in
- - Overall Length: 1 in
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.60
- Package Width: 8.50
- Package Height: 6.70
- Package Weight: 12.35
