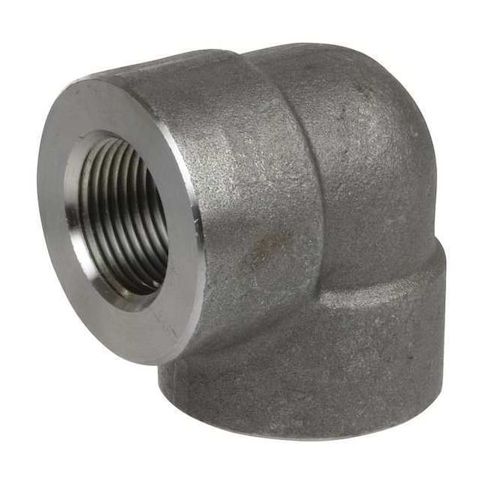

90° Elbow, 1/8 in FNPT, 316 Stainless Steel, Class 3000 MPN:4307001200
The ZORO SELECT 90 Degree Elbow fitting is a durable and reliable solution for connecting two pipes at a right angle in various industrial applications. Constructed from 316 stainless steel, it offers excellent corrosion resistance and a high pressure rating of Class 3000. Suitable for use in threaded piping systems, this fitting is ideal for high-temperature and high-pressure applications such as chemical processing, oil and gas, and power generation. Its compact design and right-angle turn make it perfect for space-constrained areas, ensuring efficient and safe fluid flow in a wide range of industries.
Top product features:
- Material Grade: 316 stainless steel, constructed for durability.
- Pressure Rating: Class 3000.
- Connection Type: FNPT (female National Pipe Thread) on both sides.
Top product applications:
- Industrial piping systems
- HVAC systems
- Chemical processing plants
The ZORO SELECT - 4307001200 is a stainless steel 90 Degree Elbow fitting designed to connect two pipes at a right angle, facilitating change in flow direction within piping systems. Constructed from 316 stainless steel, it is designed to connect with threaded piping systems according to specified standards. The fitting is rated at Class 3000, with a maximum pressure of 3000 psi at 100°F and a steam pressure capacity of 2810 psi at 350°F.
Key Features:
- - Material Grade: 316 stainless steel, constructed for durability.
- - Pressure Rating: Class 3000.
- - Connection Type: FNPT (female National Pipe Thread) on both sides.
- - Fitting Shape: 90 Degree Elbow, providing a right-angle turn in piping.
- - Outside Diameter: 7/8 inch at connection points.
- - Overall Length: 1 inch.
- - Standards: Conforms to ASME B16.11 and ASME B1.20.1 for threads and dimensions.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 1.10
- Package Height: 1.60
- Package Weight: 0.35
