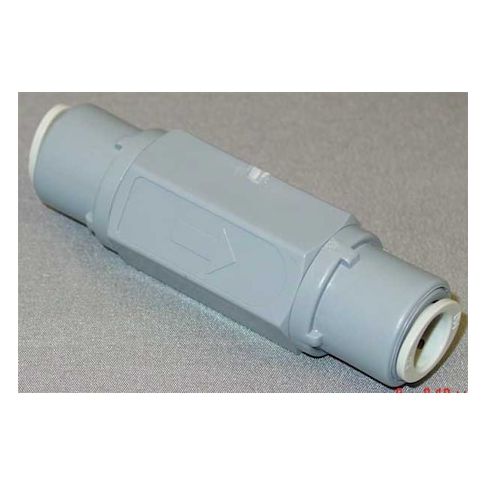

3/8" Push Gray PVC Ball Cone Spring Check Valve MPN:PVC CHK 426-6SMC6SMC-B
Free Shipping
In Stock
The 3/8in Push Gray PVC Ball Cone Spring Check Valve is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, this valve allows for full flow and features a cracking pressure of just 1 psi. Constructed with durable PVC and stainless steel materials, it can withstand temperatures from -20 to 140°F and pressures up to 125 psi. Ideal for use in water supply systems, the valve's compact size and lightweight design make it easy to install and maintain. Perfect for residential, commercial, or industrial use, this valve ensures smooth and quiet operation.
Top product features:
- Flow Design Single
- Inline Ball Cone Mechanism
- Stainless Steel Spring Material
Top product applications:
- Water supply systems for residential and commercial applications
- Steam traps in industrial processes
- Cooling systems in HVAC and refrigeration applications
Zoro Select 3/8 in. ball cone spring check valve with an inline, single-flow design and push-to-connect ends on both sides. This valve is specified for water media and is configured for single-direction flow with a spring-loaded ball check mechanism. It includes a PVC body and seat, Buna-N seal, stainless steel spring, 3.44 in. overall length, and full-flow specification as listed by the supplier.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Connection size: 3/8 in. x 3/8 in.
- Connection type: Push x Push
- Body material: PVC
- Check mechanism: Ball
- Flow design: Single
- Media: Water
- Cracking pressure: 1 psi
- Maximum operating pressure: 125 psi
- Operating temperature range: -20 degrees F to 140 degrees F
- Seal material: Buna-N
- Seat material: PVC
- Spring material: Stainless steel
- Mounting orientation: Horizontal or vertical
- Full-flow specification: Yes
- Overall length: 3.44 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.34
