304 Stainless Steel Coupling, 3/8 in FNPT, Class 3000 MPN:2UA50
Free Shipping
In Stock

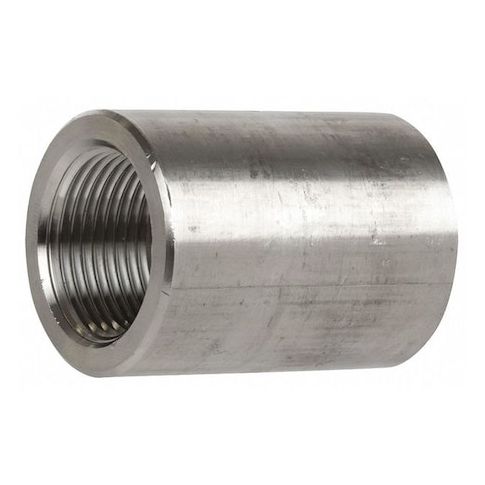

Join two 3/8 inch pipes or tubes in a straight line with the ZORO SELECT 2UA50 304 stainless steel coupling. This durable coupling provides an inline connection between two pipes with female NPT ends, featuring 18 threads per inch on both ends. Ideal for use in high-pressure applications, it meets ASTM A-182 material standards and ANSI/ASME B1.20.1 thread specifications. Suitable for use in steam and water systems, the coupling's Class 3000 pressure rating and 2500 psi steam pressure rating make it an excellent choice for industrial and commercial applications, including HVAC, plumbing, and process piping systems.
Top product features:
- 304 Stainless Steel construction
- Female NPT connections on both ends
- Meets ASTM A-182 material standards and ANSI/ASME B1.20.1 thread specifications
Top product applications:
- Industrial piping systems
- High-pressure steam distribution systems
- Medical gas supply lines
The ZORO SELECT - 2UA50 is a 304 stainless steel coupling designed to join two 3/8 inch pipes or tubes in a straight line, providing an inline connection between two 3/8 inch pipes with female NPT ends. Both ends feature female NPT connections with 18 threads per inch, allowing mating with standard female NPT threads (18 TPI) on both ends. Internal pressure rating: 3000 psi at 100°F
- Steam pressure rating: 2500 psi at 350°F. This fitting is constructed to meet ASTM A-182 material standards, ANSI/ASME B1.20.1 thread specifications, and complies with ASME B16.11 dimensional requirements. Key Features:
- - Material: 304 Stainless Steel
- - Fitting Shape: Coupling
- - Connection Type: Female NPT on both ends
- - Nominal Pipe Size: 3/8 inch on both sides
- - Thread Pitch: 18 threads per inch on both ends
- - Pressure Rating: Class 3000
- - Maximum Pressure: 3000 psi @ 100°F
- - Maximum Steam Pressure: 2500 psi @ 350°F
- - Includes no pre-applied thread sealant or seals
- - Meets ASTM A-182 for material and ANSI/ASME B1.20.1 for threads
- - Complies with ASME B16.11 dimensional specifications
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.87
- Package Width: 0.87
- Package Height: 1.50
- Package Weight: 0.13
