Ultrasonic Insert, M4-0.70, 5/16 in L, 0.234 in Insert Dia., 0.208 in Tapered End Dia., Brass MPN:DV-M40-TH-PK100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1944013

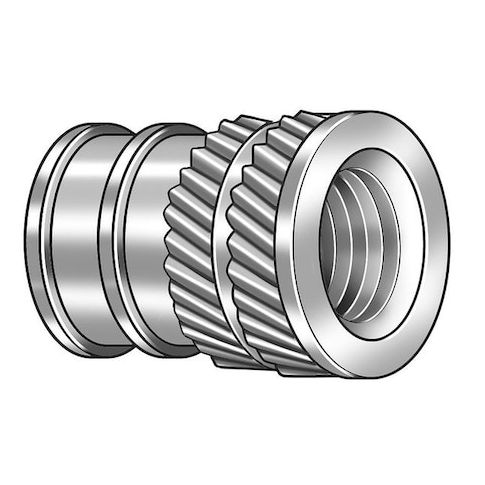

Ultrasonic Insert, M4-0.70, 5/16 in L, 0.234 in Insert Dia., 0.208 in Tapered End Dia., Brass
This ultrasonic insert is a heat-set solution for thermoplastic materials, providing exceptional pull-out resistance and durability. With a tapered end diameter of 5.2832mm, it offers a secure fit in a variety of applications, including automotive, aerospace, and industrial equipment. The flush flange style and 2-vane design ensure a strong bond with the surrounding material. Ideal for use in high-temperature environments, this insert is compatible with a range of thermoplastics and can withstand demanding conditions. Its compact size and lightweight design make it easy to integrate into complex systems, making it a reliable choice for manufacturers seeking robust and efficient solutions.
Top product features:
- Pull-Out Resistance
- Tapered Shank for Easy Insertion
- Flush Flange Style for Secure Fit
Top product applications:
- Plastic injection molding
- Automotive trim and molding
- Electrical connectors
Heat-Set Insert, Insert Type Heat-Set Insert, System of Measurement Metric, Insert Diameter 6.4 mm, Overall Length 8 mm, Thread Size M4-0.70, Thread Direction Right Hand, Thread Type Metric, Material Brass, Shank Type Tapered, Tapered End Diameter 5.2832 mm, Flange Style Flush, Number of Vanes 2, Compatible Material Thermoplastic, Drill Bit Size 0.208 in, Minimum Material Thickness 3 3/8 mm, Maximum Hole Diameter 5.9436 mm, Features Pull-Out Resistance, Finish Plain
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.20
Product info last updated on February 26, 2026 1:50pm UTC
Category: Threaded Inserts
