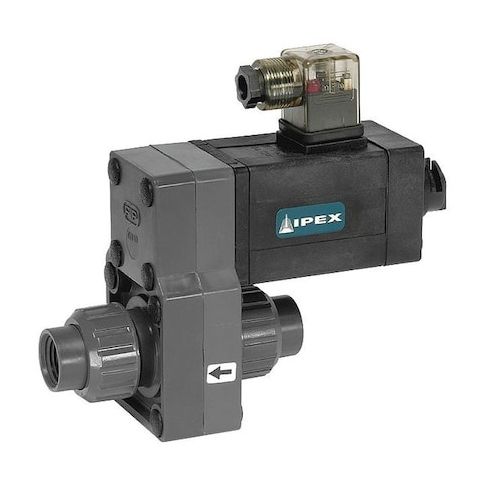

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Direct Acting, PVC MPN:4GPR1
Free Shipping
In Stock
The ZORO SELECT 4GPR1 solenoid valve is a reliable and efficient solution for controlling fluid flow in various applications. This 2-way, 2-position valve features a normally closed configuration, making it ideal for use in systems where fluid flow needs to be shut off when not in use. With a maximum flow rate of 22 gallons per minute and a Cv of 0.95, it's suitable for light oil and water applications. Perfect for use in irrigation systems, water treatment plants, and other industrial processes, this valve offers a compact and watertight design, making it a great addition to any system.
Top product features:
- It uses a direct acting mechanism to control fluid flow by opening or closing the flow path with an energized coil.
- It features a maximum flow rate of 22 gallons per minute.
- It has a maximum fluid temperature rating of 140°F and a differential pressure rating of 0 to 90 psi (at 73°F) for light oil and water.
Top product applications:
- Automotive fluid management systems
- Industrial process control systems
- Water treatment and filtration systems
The ZORO SELECT 4GPR1 is a 2-way, 2-position solenoid valve with a normally closed starting configuration. It uses a direct acting mechanism to control fluid flow by opening or closing the flow path with an energized coil. Constructed with a PVC body and Viton seals, rated for operation with water media, it features a maximum flow rate of 22 gallons per minute and a coefficient of volume (Cv) of 0.95. Maximum fluid temperature rating: 140°F and Differential pressure rating: 0 to 90 psi (at 73°F) for light oil and water. The product includes a coil and requires a 120V AC power supply at 50 Hz frequency.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation Type: Direct Acting
- - Body Material: PVC
- - Seal Material: Viton (FKM)
- - Maximum Flow Rate: 22 gpm
- - Coefficient of Volume (Cv): 0.95
- - Maximum fluid temperature rating: 140°F
- - Differential pressure rating: 0 to 90 psi (at 73°F) for light oil and water
- - Orifice Diameter: 5/16 in
- - Electrical Voltage: 120V AC
- - Wattage: 12 W
- - Frequency: 50 Hz
- - Coil enclosure: Watertight (NEMA 4)
- - Coil Insulation Class: F
- - Electrical Connections: Wire Leads
- - NEMA Enclosure Rating: 4
- - Nominal Pipe Size: 1/4 in
- - Includes Coil: Yes
- - Dimensions: 5-1/32 in height, 3-5/8 in length, 2 in width
Additional Information
- Country of Origin: IT
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 2.30
- Package Height: 5.60
- Package Weight: 1.28
