Flange Gasket, 6 in., 1/8 in., Black MPN:FLEXIGRAF-RG-0150-125-0600
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1924679

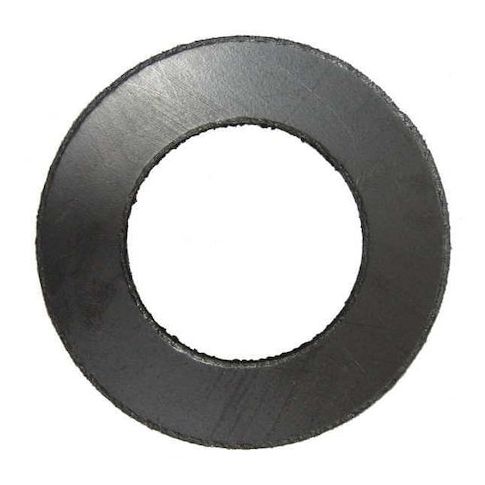

Flange Gasket, 6 in., 1/8 in., Black
This high-quality flange gasket is designed for use in demanding applications, featuring a graphite gasket material and 316 stainless steel insert for exceptional durability and resistance to extreme temperatures. With a temperature range of -400°F to 850°F, it can withstand the harshest conditions. Suitable for pipe sizes 6 inches and ANSI Class 150 flanges, this gasket provides a reliable seal and is ideal for use in industrial settings, such as chemical processing, oil and gas, and power generation. Its compact size and lightweight design make it easy to install and maintain.
Top product features:
- Graphite gasket material provides high temperature resistance
- 316 stainless steel insert material ensures durability and corrosion resistance
- Ring design allows for secure sealing of 6 in. flanges under ANSI Class 150 conditions
Top product applications:
- High-temperature industrial piping systems
- Low-temperature cryogenic applications
- High-pressure chemical processing equipment
Ring Flange Gasket, Gasket Material Graphite, Insert Material 316 Stainless Steel, For Pipe Size 6 in, For Flange ANSI Class 150, Binder Material None, Color Black, Inside Diameter 6 5/8 in, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 850 Degrees F, Outside Diameter 8 3/4 in, Thickness 1/8 in, Product Type Ring Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated, Includes Mounting Hardware No, X-Ray Detectable No
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.80
- Package Width: 8.80
- Package Height: 0.20
- Package Weight: 0.14
Product info last updated on February 28, 2026 10:21pm UTC
Category: Sealing and Gasketing
