Spiral Wound Metal Gasket, CRIR, 8in, 11in MPN:SWCRIR-0800-P1-G-WE-OA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1896715

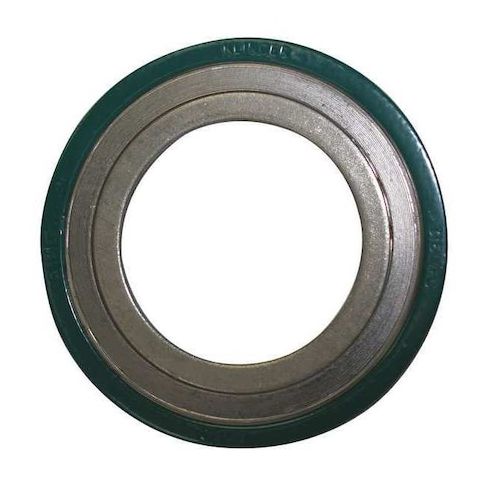

Spiral Wound Metal Gasket, CRIR, 8in, 11in
The Spiral Wound Metal Gasket from GoVets Select is a high-performance solution for demanding applications. Suitable for use with ANSI Class 150 flanges, this gasket excels in high-temperature environments, with a maximum operating temperature of 932°F and a minimum operating temperature of 0°F. The graphite filler material and stainless steel spiral winding ensure excellent sealing properties, while the carbon steel outer ring provides durability. This gasket is ideal for use in industrial settings, such as power plants, chemical processing facilities, and oil refineries, where reliable and long-lasting performance is critical. Its compact design and ease of installation make it a valuable asset for any industry.
Top product features:
- Spiral winding material made of stainless steel for resistance to corrosion and durability.
- Inner ring made of stainless steel for resistance to corrosion and durability.
- Filling material is graphite for effective sealing and reducing gasket wear.
Top product applications:
- High-Pressure Steam Applications
- Industrial Pump and Valve Sealing
- Power Plant and Boiler Sealing
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 8 in, Inside Diameter 9 3/16 in, Outside Diameter 11 in, Thickness 1/4 in, Rim Stripe Color Gray, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature 0 Degrees F, Maximum Operating Temperature 932 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material Stainless Steel, Inner Ring Stainless Steel Grade 304
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 18 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 12.00
- Package Height: 3.00
- Package Weight: 4.00
Product info last updated on February 3, 2026 5:13am UTC
Category: Sealing and Gasketing
